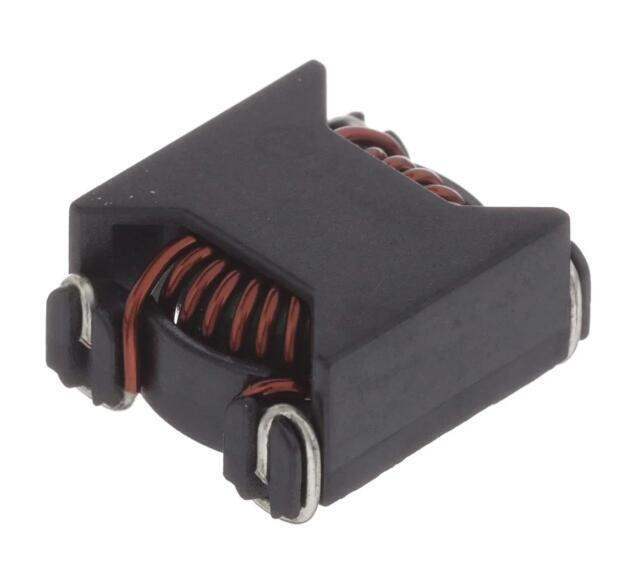

PA2756NLT

Part No PA2756NLT
Manufacturer Pulse A Technitrol Company
Catalog Common Mode Chokes
Description Common Mode Chokes / Filters 484 UH 8A
Datasheet
PA2756NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse
Category Common Mode Chokes
Mounting Style PCB Mount
Termination Style SMD/SMT
Number of Channels 2 Channel
Inductance 484 uH
Tolerance 35 %
Maximum DC Current 8 A
Maximum DC Resistance 7.7 mOhms
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Package / Case LCCI-50
Length 19.6 mm
Width 17 mm
Ultra Librarian 3D Model Ultra Librarian PA2756NLT CAD Model

Description

Common Mode Chokes / Filters 484 UH 8A
