Same model may have multiple batches, images only for reference.

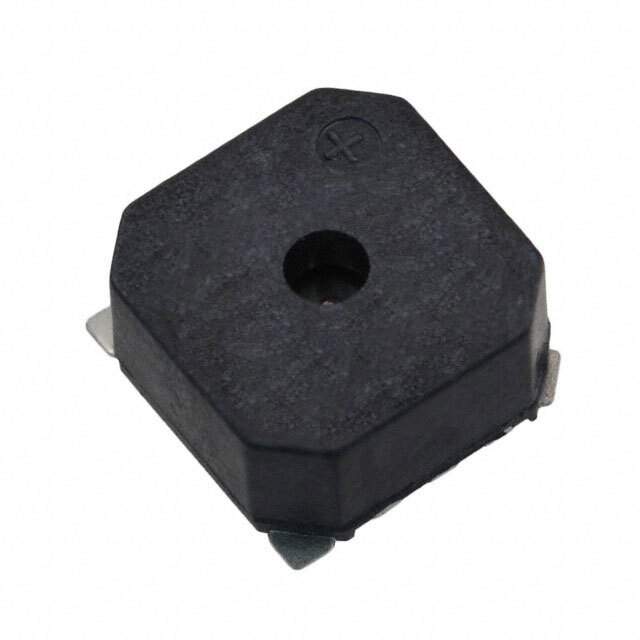

SMT-0821-T-R Real Image
Same model may have multiple batches, images only for reference.

SMT-0821-T-R

Part No SMT-0821-T-R
Manufacturer PUI Audio, Inc.
Catalog Alarms, Buzzers, and Sirens
Description AUDIO MAGNETIC XDCR 2-5V SMD
Datasheet
SMT-0821-T-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Series SMT
Packaging Reel package
Driver Circuitry Transducer, Externally Driven
Input Type peak-peak Signal
Voltage Rating DC 3.6V
Voltage Range 2 ~ 5V
Frequency 2.1kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 87dB @ 3.6V, 10cm
Operating Supply Current 90mA
Port Location Top
Operating Temperature Range -30°C ~ 70°C
Mounting SMD
Termination Solder Pads
Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Maximum) 0.161" (4.10mm)
Win Source Part Number 760020-SMT-0821-T-R
Popularity Medium
Supply and Demand Status Limited
Family Name SMT-0821-T-R
Introduction Date January 17, 2008
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SMT-0821-T-R CAD Model

Description

The PUI Audio SMT-0821-T-R is a surface mount magnetic transducer from PUI Audio.

  • Frequency: 2.1kHz
  • Sound Pressure Level: 87dB @ 3.6V and 10cm
  • Voltage Range: 2 ~ 5V
  • Operating Temperature Range: -30°C to 70°C
  • Driver Circuitry: Transducer, externally driven
  • Package: 0.335" L x 0.335" W (8.50mm x 8.50mm)
  • Pieces: 1
  • Packaging: Reel
  • Applications: Alarm systems, medical devices, and industrial equipment
