Same model may have multiple batches, images only for reference.

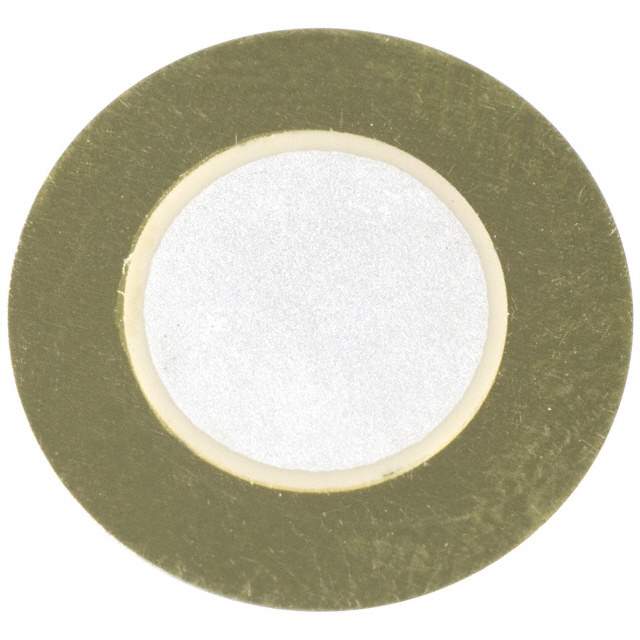

AB1548B Real Image
Same model may have multiple batches, images only for reference.

AB1548B

Part No AB1548B
Manufacturer PUI Audio, Inc.
Catalog Buzzer Elements, Piezo Benders
Description BUZZER ELEMENT PIEZO 4.8KHZ 15MM / Audio Diaphragm Piezo 20Vp-p 4300Hz to 5300Hz Wire Lead
Datasheet
AB1548B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Frequency 4.8kHz
Voltage Input MAX 20V p-p
Type Standard
Impedance 2 kOhm
Capacitance @ Frequency 7500pF @ 1kHz
Operating Temperature Range -20°C ~ 70°C
Dimension 0.591" Dia (15.00mm)
Termination None
Win Source Part Number 769452-AB1548B
Popularity Medium
Supply and Demand Status Limited
Family Name AB1548B
Introduction Date January 13, 2006
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AB1548B CAD Model

Description

The PUI Audio, Inc. AB1548B is a standard type electronic component that operates in the temperature range of -20°C to 70°C.

  • Impedance: 2 kOhm
  • Frequency: 4.8kHz
  • Capacitance @ Frequency: 7500pF @ 1kHz
  • Category: Audio Products
  • Market Popularity: Medium
  • Estimated EOL Date: 2025
