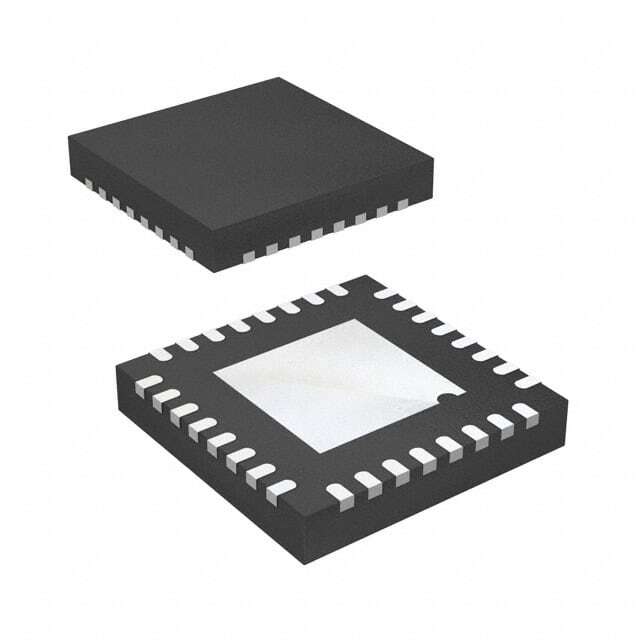

PE42820B-X pSemi
Same model may have multiple batches, images only for reference.

PE42820B-X

Part No PE42820B-X
Manufacturer pSemi
Catalog RF Switches
Description IC RF SWITCH SPDT 2.7GHZ 32QFN / RF Switch IC General Purpose SPDT 2.7 GHz 50Ohm 32-QFN (5x5)
Datasheet
PE42820B-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr pSemi
Series UltraCMOS®, HaRP™
Package Tape & Reel
RF Type General Purpose
Topology Reflective
Circuit SPDT
Frequency Range 30MHz ~ 2.7GHz
Isolation 24dB
Insertion Loss 0.7dB
Test Frequency 2.7GHz
IIP3 81dBm
Impedance 50Ohm
Voltage - Supply 2.3V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Base Product Number PE42820
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1046-1104-1,1046-1104-2,1046-1104-6,PE42820MLBA-X
Standard Package 500
Win Source Part Number 1171601-PE42820B-X
Ultra Librarian 3D Model Ultra Librarian PE42820B-X CAD Model

Description

The PE42820B-X is a reflective SPDT RF switch with a frequency range of 30MHz to 2.7GHz. The PE42820B-X is manufactured by .

  • Insertion Loss: 0.7dB
  • Isolation: 24dB
  • IIP3: 81dBm
  • Voltage Supply: 2.3V to 5.5V
  • Package: 32-VFQFN Exposed Pad
  • Supplier Device Package: 32-QFN (5x5)
  • Application: RF/IF and RFID
