PE42522B-X

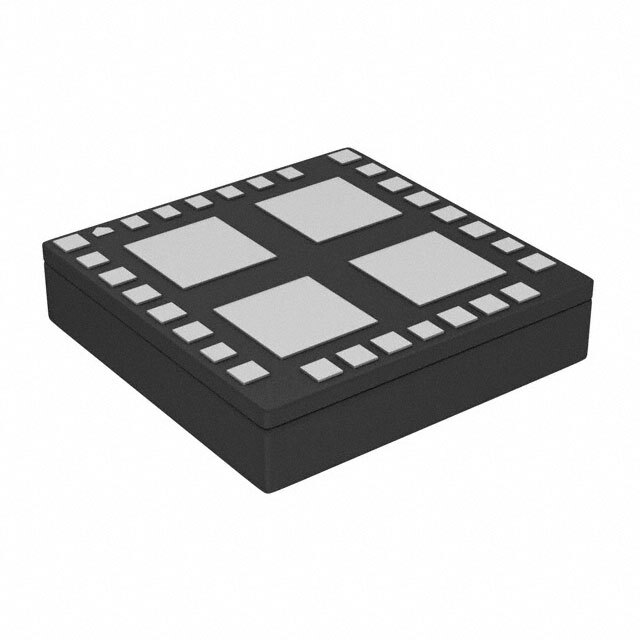

Same model may have multiple batches, images only for reference.

PE42522B-X

Part No PE42522B-X
Manufacturer pSemi
Catalog RF Switches
Description IC RF SWITCH SPDT 26.5GHZ 29LGA
Datasheet
PE42522B-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 27 Weeks
Features RF Switch IC - SPDT 50Ohm 29-LGA (4x4)
Manufacturer pSemi
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Package 29-TFLGA Exposed Pad
Case / Package 29-LGA (4x4)
Family Name PE42522
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 1046-1135-2, 1046-1135-1, 1046-1135-6, PE42522A-X
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930203-PE42522B-X
Ultra Librarian 3D Model Ultra Librarian PE42522B-X CAD Model

Description

The pSemi 930203-PE42522B-X is a high-quality RF switch IC that is perfect for various RF/IF and RFID applications.

  • Package: 29-LGA (4x4)
  • Operating Temperature Range: -40°C to 85°C
  • Type: SPDT 50Ohm switch
  • Popularity: High
  • Supply and Demand: Balanced
