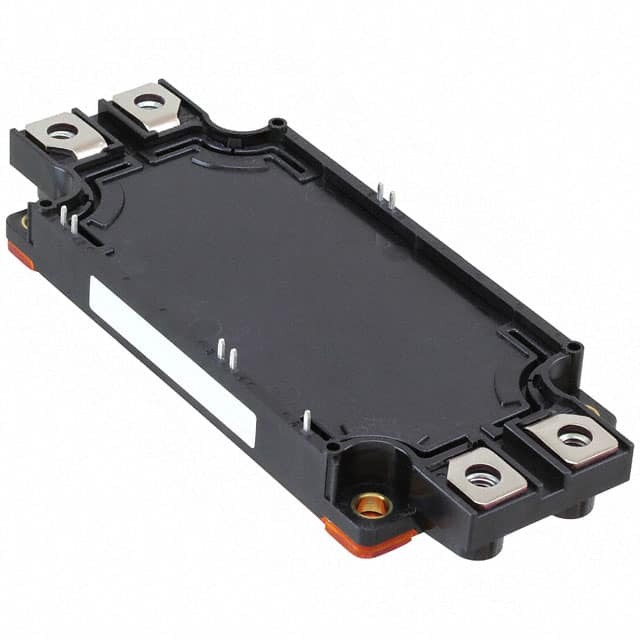

CM450DX-24S1
Same model may have multiple batches, images only for reference.

CM450DX-24S1

Part No CM450DX-24S1
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 450A 2775W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr Powerex Inc.
Package Tray
Product Status Discontinued
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 450 A
Power - Max 2775 W
Vce(on) (Max) @ Vge, Ic 2.25V @ 15V, 450A
Current - Collector Cutoff (Max) 1 mA
Input Capacitance (Cies) @ Vce 45 nF @ 10 V
Input Standard
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 150°C (TJ)
Package / Case Module
Supplier Device Package Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 846772-CM450DX-24S1
Ultra Librarian 3D Model Ultra Librarian CM450DX-24S1 CAD Model

Description

The 846772-CM450DX-24S1 is a high-power IGBT module designed for use in various applications.

  • Configuration: Half Bridge
  • Maximum Power: 2775 W
  • Input: Standard Input
  • IGBT Type: Not Specified
  • Voltage Breakdown: 1200 V
  • Maximum Collector Current: 450 A
  • Vce(on): 2.25V @ 15V and 450A
  • Package Type: Tray
  • Operating Temperature: -40°C to 150°C (TJ)
  • Status: Discontinued
  • Manufacturer: Powerex Inc.
