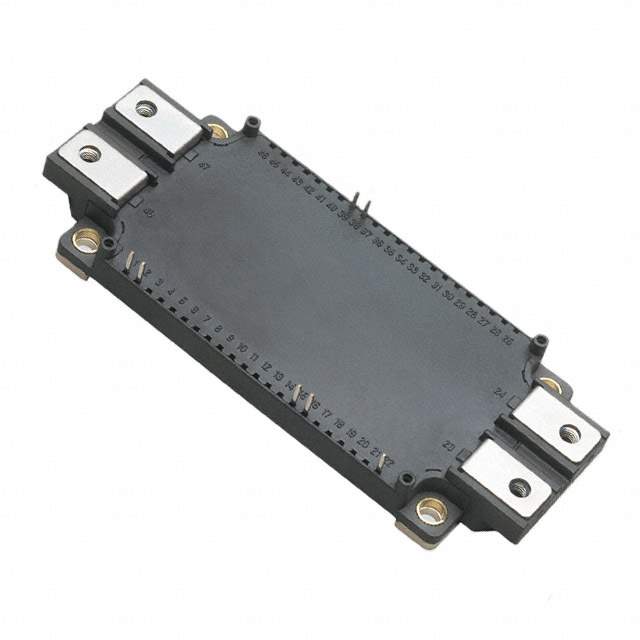

CM200DX-24S Real Image
Same model may have multiple batches, images only for reference.

CM200DX-24S

Part No CM200DX-24S
Manufacturer Powerex Inc.
Catalog IGBTs - Modules
Description IGBT MOD 1200V 200A 1500W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features IGBT Module - Half Bridge 1200 V 200 A 1500 W Chassis Mount Module
Manufacturer Powerex Inc.
Series IGBTMOD™
Package Bulk
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package Module
Case / Package Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number 835-1123, CM200DX24S
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915561-CM200DX-24S
Ultra Librarian 3D Model Ultra Librarian CM200DX-24S CAD Model

Description

The 915561-CM200DX-24S IGBT Module from Powerex Inc. is a Half Bridge module that features 1200 V, 200 A, and 1500 W.

  • Module Type: IGBT Module
  • Configuration: Half Bridge
  • Voltage: 1200 V
  • Current: 200 A
  • Power: 1500 W
  • Mounting: Chassis Mounting
  • Packaging: Bulk
  • Product Category: Discrete Semiconductor Product
  • Series: IGBTMOD™
  • Operating Temperature: -40°C to 150°C (TJ)
  • ECCN: EAR99
  • Popularity: High
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.29.0095
  • Manufacturer: Powerex Inc.
