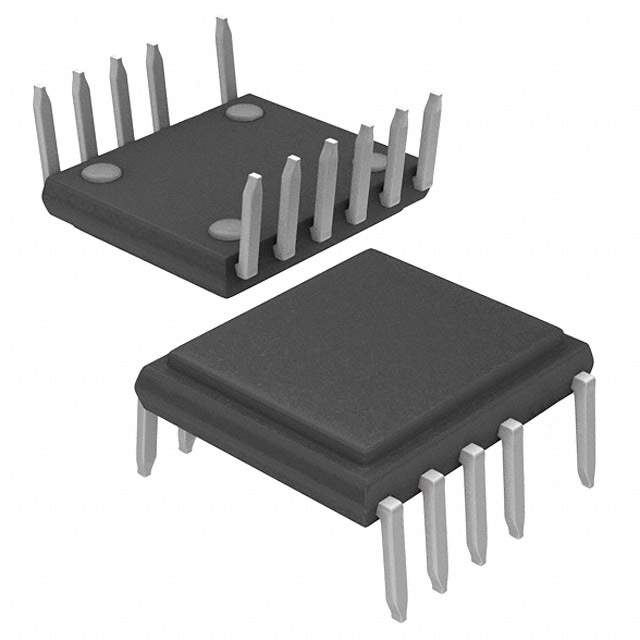

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 78%
Switching Frequency 66kHz, 132kHz
Power (W) 55W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features Frequency Control
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package 12-SDIP (0.412", 10.46mm) Exposed Pad
Supplier Device Package eDIP-12
Mounting Style Through Hole
Manufacturer Pack Quantity 48
MSL Level 1 (Unlimited)
Win Source Part Number 1271648-TOP270VG
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TOP270VG CAD Model

Description

The Power Integrations TOP270VG is an integrated circuit designed for specific applications.

  • Manufacturer: Power Integrations
  • Product Name: TOP270VG
  • Package: Tube
  • Mounting Style: Through-Hole
  • Voltage Breakdown: 725V
  • Topology: Flyback
  • Duty Cycle: 78%
  • Protection: Current Limiting, Over-Load, Over-Temperature, Over-Voltage, Short-Circuit
  • Popularity: Medium
  • Supply and Demand Status: Balanced
