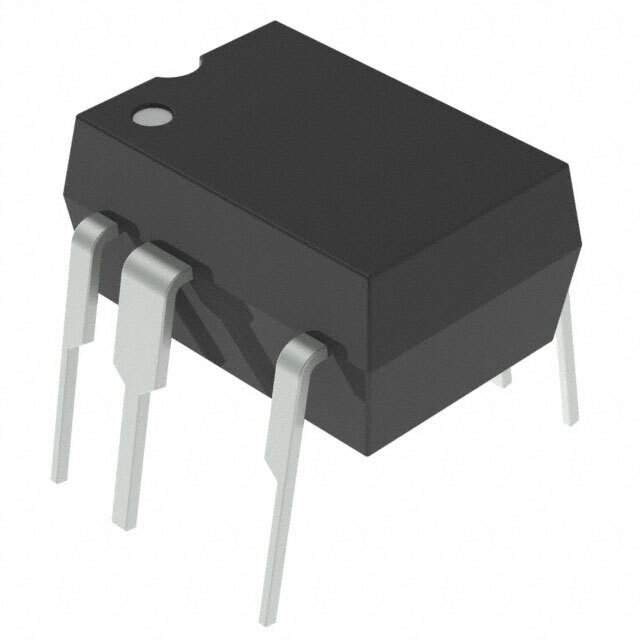

TOP255PN Real Image
Same model may have multiple batches, images only for reference.

TOP255PN

Part No TOP255PN
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SWIT PROG OVP 8DIP
Datasheet
TOP255PN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 78%
Frequency - Switching 66kHz
Power (Watts) 30W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Operating Temperature -40°C to 150°C (TJ)
Case / Package DIP-8C
Mounting Through Hole
Win Source Part Number 091193-TOP255PN
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TOP255PN CAD Model

Description

This integrated circuit has a limited supply and demand status.

  • Packaging: tube/rail
  • Mounting Type: through hole
  • Power: 30W
  • Output Isolation: isolated
  • Internal Switch(s): yes
  • Voltage Breakdown: 700V
  • Topology: flyback
  • Duty Cycle: 78 percent
  • Frequency Switching: 66kHz
  • Fault Protection: current limiting, over temperature, and over voltage
  • Case/Package: DIP-8C
  • Control Operating Temperature: -40°C to 150°C (TJ)
  • Commonly Used Part: Yes
