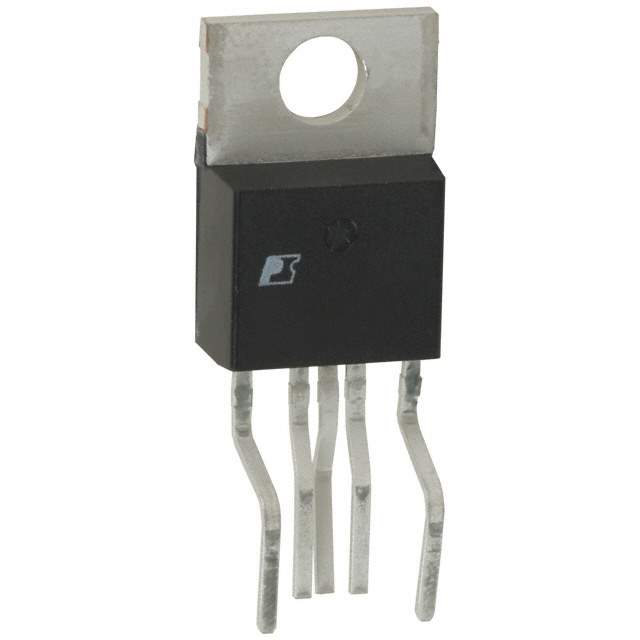

The TOP233Y is an integrated off-line switcher IC belonging to the TOPSwitch-GX family manufactured by Power Integrations. It combines a high-voltage power MOSFET with a power supply controller in a single package, simplifying the design of off-line power supplies. The TOP233Y offers several features to improve efficiency and reduce component count in various power conversion applications.

Applications

• AC-DC Power Supplies
• Adapters
• Battery Chargers
• Standby Power Supplies
• Consumer Electronics Power Supplies

Features

• Integrated High-Voltage Power MOSFET: Reduces component count and simplifies design.
• EcoSmart Energy Efficiency: Meets stringent energy efficiency standards.
• Overload Protection: Protects against overcurrent and short circuits.
• Overtemperature Protection: Shuts down the device to prevent thermal damage.
• Auto-Restart: Automatically recovers from fault conditions.

Benefits

• Simplified Design: Integrated components reduce design complexity and cost.
• High Efficiency: EcoSmart technology minimizes power consumption and improves efficiency.
• Robust Protection: Overload and overtemperature protection ensure reliable operation.
• Reduced Component Count: Integration reduces the number of external components required.
• Improved Reliability: Integrated design enhances overall system reliability.

Additional Details

The TOP233Y typically operates from a universal input voltage range (85-265 VAC). It provides output power depending on the specific application and thermal conditions. The EcoSmart technology enables the power supply to meet stringent energy efficiency standards, such as Energy Star and ErP. The integrated power MOSFET is optimized for high-voltage switching. The overload protection feature limits the output current to prevent damage from short circuits or overloads. The overtemperature protection shuts down the device when the temperature exceeds a safe limit. Power Integrations ensures that this product meets industry standards for environmental compliance, such as RoHS.
