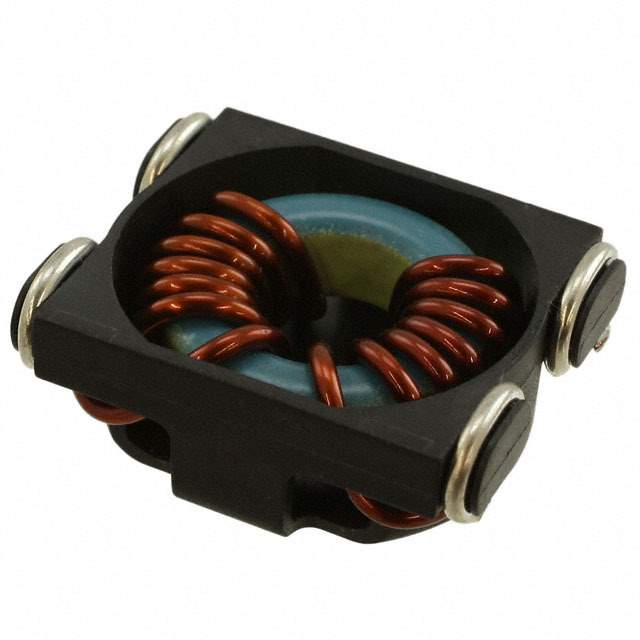

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Pulse Electronics Power
Series HCCI-80
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 10.5 µH
Inductance - Connected In Series 42 µH
Tolerance ±15%
Current Rating - Parallel 19 A
Current Rating - Series 9.5 A
DC Resistance (DCR) - Parallel 4.8mOhm Max
DC Resistance (DCR) - Series 19.3mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height 0.500" (12.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-2073-6,P0595NLT-ND,553-2073-1,553-2073-2
Standard Package 75
Win Source Part Number 1191549-P0595NLT
Ultra Librarian 3D Model Ultra Librarian P0595NLT CAD Model

Description

The P0595NLT is an inductor coil manufactured by Pulse Electronics Power.

  • Series: HCCI-80
  • Packaging: Tape and Reel
  • Standard Package: 75
  • Mounting: SMD (SMT)
  • Tolerance: ±15%
  • Height: 0.500" (12.70mm)
  • Coils: 2
  • Inductance (Series): 42 μH
  • Inductance (Parallel): 10.5 μH
  • Current Rating (Parallel): 19 A
  • Current Rating (Series): 9.5 A
  • DC Resistance (DCR) Parallel: 4.8mOhm Max
  • DC Resistance (DCR) Series: 19.3mOhm Max
  • Type: Non-Standard
  • Temperature Range: -40°C ~ 130°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
