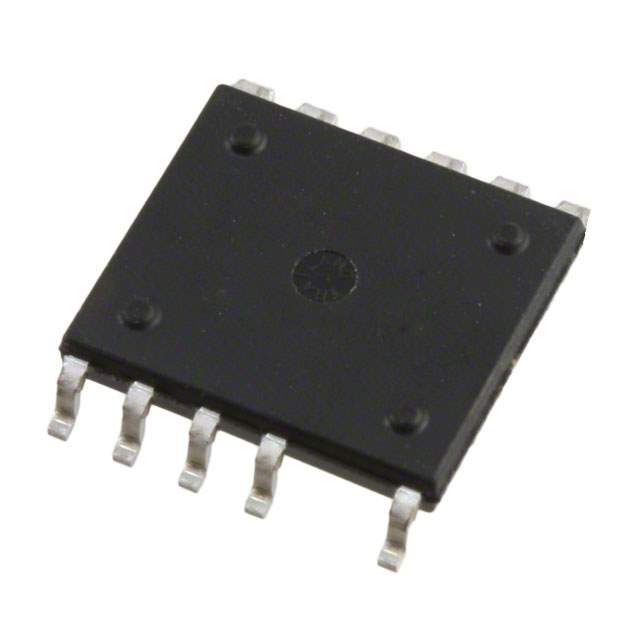

TNY289KG-TL Real Image
Same model may have multiple batches, images only for reference.

TNY289KG-TL

Part No TNY289KG-TL
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description Energy-Efficient, Off-Line Switcher With Line Compensated Overload Power
Datasheet
TNY289KG-TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Power Integrations
Series TinySwitch-4
Packaging Reel - TR
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 725V
Topology Flyback
Duty Cycle 67%
Frequency - Switching 124kHz ~ 140kHz
Power (Watts) 25W
Fault Protection Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Control Features EN
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 12-BESOP (0.350", 8.89mm Width) 11 Leads, Exposed Pad
Manufacturer Package 12-ESOP
Mounting SMD
Win Source Part Number 1271575-TNY289KG-TL
Manufacturer Homepage www.powerint.com
Popularity Medium
Supply and Demand Status Limited
Family Name TNY289
Introduction Date September 25, 2012
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian TNY289KG-TL CAD Model

Description

The TinySwitch-4 series from Power Integrations is an isolated flyback topology integrated circuit with internal switch(s).

  • Model: 1271575-TNY289KG-TL
  • Power (Watts): 25W
  • Package: 12-BESOP (0.350", 8.89mm Width) 11 Leads, Exposed Pad
  • Mounting Technology: SMD
  • Output Isolation: isolated
  • Voltage Breakdown: 725V
  • Duty Cycle: 67%
  • Frequency Switching: 124kHz ~ 140kHz
  • Control Features: EN
  • Fault Protection: current limiting, open loop, over temperature, over voltage, and short circuit
  • ECCN: EAR99
  • EOL Date: 2022
