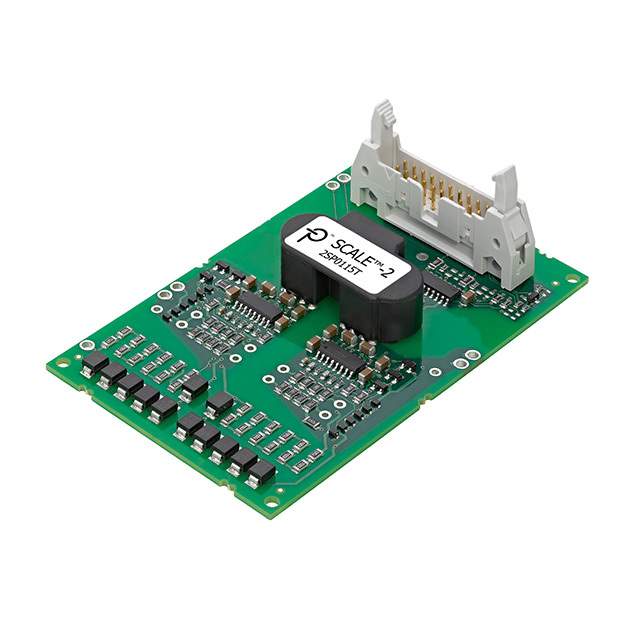

2SP0115T2A0-17

Name: 2SP0115T2A0-17
Brand: Power Integrations
SKU: 700864
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2SP0115T2A0-17
Manufacturer	Power Integrations
Catalog	PMIC - Gate Drivers
Description	IGBT Module 20-Pin / IC DUAL GATE DRIVER
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Power Integrations
Packaging	Tray
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT
Supply Voltage (V)	14.5V ~ 15.5V
Current - Peak Output (Source, Sink)	8A, 15A
High Side Voltage - Max (Bootstrap)	1700V
Rise / Fall Time	5ns, 10ns
Temperature Range - Operating	-20°C ~ 85°C
Mounting Style	SMD
Manufacturer Package	Module
Supplier Device Package	Module
Manufacturer Pack Quantity	12
MSL Level	1 (Unlimited)
Win Source Part Number	700864-2SP0115T2A0-17
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	2SP0115T2A0-17
Introduction Date	April 27, 2010
ECCN	EAR99
Ultra Librarian 3D Model	Ultra Librarian 2SP0115T2A0-17 CAD Model

Description

The Power Integrations 2SP0115T2A0-17 is a half-bridge independent channel type IGBT gate driver module. Power Integrations manufactures it.

Driver Count: 2
High-Side Voltage: 1700V
Operating Temperature: -20°C to 85°C
Supply Voltage: 14.5V to 15.5V
Rise Time: 5ns
Fall Time: 10ns
RoHS Compliant: Yes
Package: Tray
Package Quantity: 12
