Same model may have multiple batches, images only for reference.

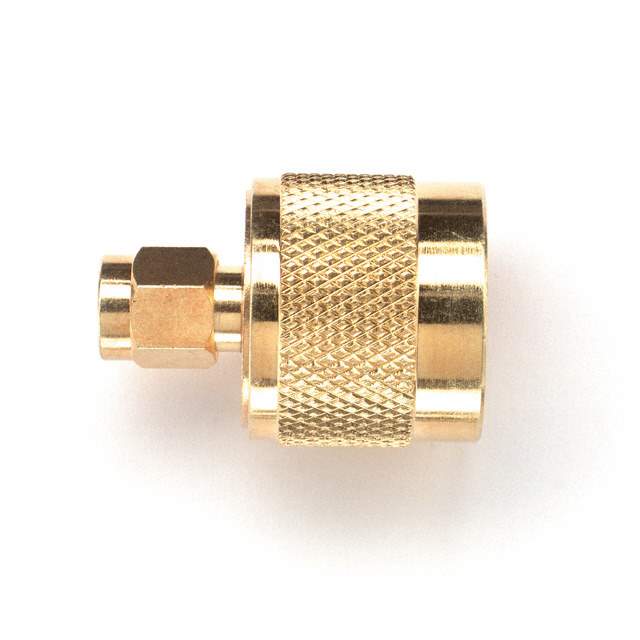

4296 Real Image
Same model may have multiple batches, images only for reference.

4296

Part No 4296
Manufacturer Pomona Electronics
Catalog Coaxial Connectors (RF)
Description Conn SMA-Type N Adapter PL/PL 0Hz to 12.4GHz 50Ohm ST Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Copper
Body Plating Gold
Case / Package SMA
Color Black
Connector Type Coaxial, SMA
Contact Material Brass
Contact Plating Gold
Dielectric Material PTFE
Frequency 12.4 Hz
Gender Type A Male
Gender Type B Male
Impedance 50 Ω
Insulation Material Polytetrafluoroethylene
Lead Free Lead Free
Length 33.27 mm
Max Frequency 12.4 GHz
Max Operating Temperature 165 °C
Min Operating Temperature -65 °C
Mount Free Hanging
Orientation Straight
Plating Gold
Polarity Normal
REACH SVHC No SVHC
RoHS Compliant
Voltage Rating 335 V
Win Source Part Number 1118681-4296
Categories Coaxial Connectors(RF)
Manufacturer Pomona Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4296 CAD Model

Description

The 4296 from Pomona Electronics is a coaxial connector that has an SMA connector type.

  • Connector Type: SMA
  • Voltage Rating: 335V
  • Impedance: 50 Ohms
  • Contact Material: Brass
  • Contact Plating: Gold
  • Body Material: Copper
  • Body Plating: Gold
  • Insulation Material: Polytetrafluoroethylene
  • Dielectric Material: PTFE
  • Orientation: Straight
  • Mounting: Free Hanging
  • Length: 33.27 mm
  • Frequency: 12.4 Hz
  • RoHS Compliant: Yes
  • Win Source Part Number: 1118681-4296
