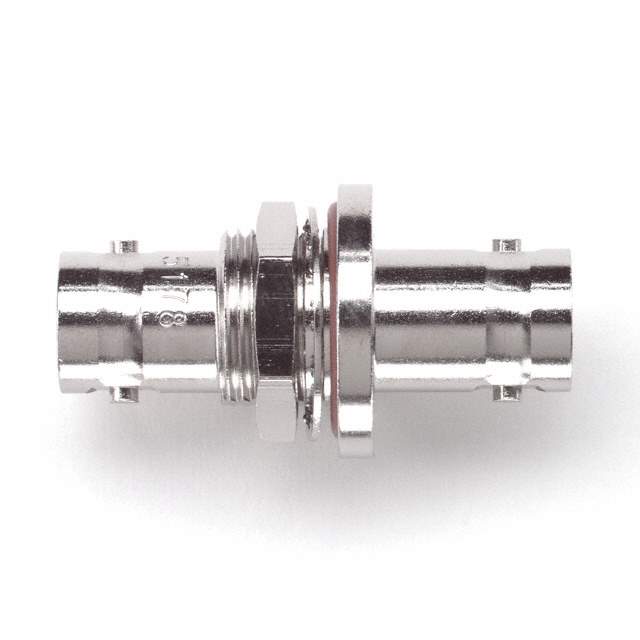

5178 Real Image1 5178 Real Image2
Same model may have multiple batches, images only for reference.
5178 Real Image1 5178 Real Image2
5178 Real Image1 5178 Real Image2
Same model may have multiple batches, images only for reference.

5178

Part No 5178
Manufacturer Pomona Electronics
Catalog Coaxial Connectors (RF)
Description CONN ADAPT JACK-JACK BNC TRIAX / Adapter Coaxial Connector BNC Triaxial Jack, Female Socket To BNC Triaxial Jack, Female Socket
Datasheet
5178 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Adapters
Mfr Pomona Electronics
Series -
Package Bulk
Adapter Type Jack to Jack
Conversion Type Same Series
Adapter Series BNC Triaxial to BNC Triaxial
Center Gender Female to Female
Convert From (Adapter End) BNC Triaxial Jack, Female Socket
Convert To (Adapter End) BNC Triaxial Jack, Female Socket
Impedance -
Style Straight
Mounting Type Panel Mount
Mounting Feature Bulkhead
Fastening Type Bayonet Lock, Bayonet Lock
Ingress Protection -
Center Contact Plating Gold
Features -
Includes 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish -
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles -
Insertion Loss -
Temperature Range - Operating -
Base Product Number -
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 1 pcs
Win Source Part Number 1380894-5178
Ultra Librarian 3D Model Ultra Librarian 5178 CAD Model

Description

The 5178 Coaxial Connector Adapter is a versatile component used in RF applications.

  • Style: Straight
  • Fastening Type: Bayonet Lock
  • Body Material: Brass
  • Center Contact Plating: Gold
  • Mounting Type: Bulkhead Mounting
  • Panel Mount: Yes
  • Compatible With: BNC Triaxial Jack, Female Socket
  • Includes: 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
