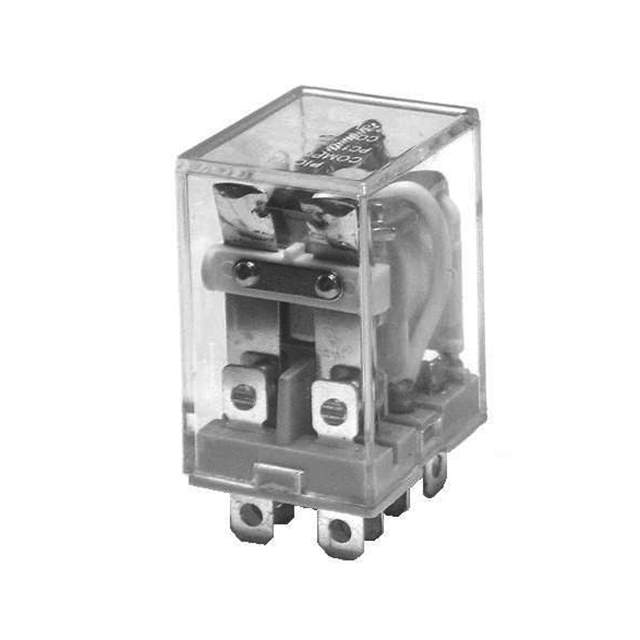

PC113-2C-C1-24A-X Real Image
Same model may have multiple batches, images only for reference.

PC113-2C-C1-24A-X

Part No PC113-2C-C1-24A-X
Manufacturer Picker Components
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 12A 24V  /  General Purpose Relay DPDT (2 Form C) 24VAC Coil Chassis Mount
Datasheet
PC113-2C-C1-24A-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Picker Components
Package Tray
Mounting Type Chassis Mount
Coil Voltage 24VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 12 A
Switching Voltage 250VAC, 28VDC - Max
Coil Current 130.4 mA
Coil Type Non Latching
Termination Style Solder Lug
Coil Insulation Class F
Must Operate Voltage 19.2 VDC
Must Release Voltage 7.2 VDC
Operate Time 25 ms
Release Time 25 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 184 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 2634-PC113-2C-C1-24A-X
Standard Package 25
Win Source Part Number 1217399-PC113-2C-C1-24A-X
Ultra Librarian 3D Model Ultra Librarian PC113-2C-C1-24A-X CAD Model

Description

The PC113-2C-C1-24A-X power relay from Picker Components is a DPDT (2 Form C) relay that has a silver cadmium oxide (AgCdO) contact material.

  • Coil Voltage: 24VAC
  • Contact Rating: 12 A
  • Switching Voltage: 250VAC, 28VDC - Max
  • Coil Resistance: 184 Ohms
  • Coil Current: 130.4 mA
  • Temperature Range: -40°C to 70°C
  • Must Operate Voltage: 19.2 VDC
  • Must Release Voltage: 7.2 VDC
  • Coil Insulation: Class F
