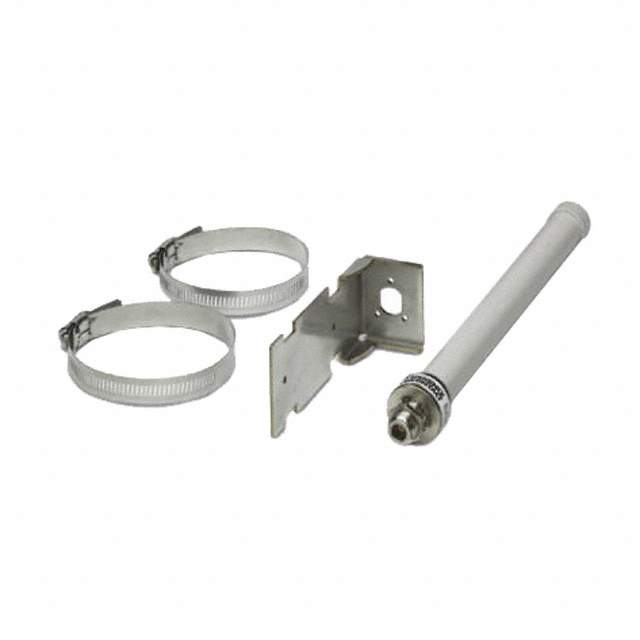

The RAD-ISM-2400-ANT-OMNI-6-0 is an omnidirectional antenna manufactured by Phoenix Contact. It is designed for use in the 2.4 GHz ISM (Industrial, Scientific, and Medical) band and is commonly used with wireless communication systems such as WLAN, Bluetooth, and Zigbee. This antenna provides a broad coverage pattern, making it suitable for applications where signals need to be transmitted and received in all directions.

Applications

• Industrial automation: Wireless sensor networks, remote monitoring systems, and machine-to-machine (M2M) communication.
• Building automation: Wireless lighting control, HVAC systems, and security systems.
• Smart grids: Wireless meter reading, distribution automation, and smart home applications.
• Transportation systems: Wireless communication for trains, buses, and traffic management systems.
• Wireless internet access: WLAN access points, wireless bridges, and outdoor Wi-Fi networks.

Features

• Omnidirectional radiation pattern: Provides 360-degree coverage.
• 2.4 GHz ISM band operation: Compatible with WLAN, Bluetooth, Zigbee, and other wireless technologies using this band.
• 6 dBi gain: Enhances signal strength and range.
• Robust construction: Designed for outdoor use and resistance to environmental factors.
• N-type connector: Provides a secure and reliable connection to wireless devices.

Benefits

• Extended range: Higher gain increases the distance over which wireless signals can be transmitted and received.
• Improved signal quality: Enhanced signal strength reduces interference and improves data transmission reliability.
• Flexible deployment: Omnidirectional coverage eliminates the need for precise antenna alignment.
• Durable performance: Robust construction ensures long-term operation in harsh environments.
• Easy installation: N-type connector allows for quick and easy connection to wireless devices.

Additional Details

The RAD-ISM-2400-ANT-OMNI-6-0 antenna typically features a weatherproof enclosure to protect it from rain, snow, and other environmental elements. Its operating temperature range allows it to function reliably in both hot and cold climates. The antenna's VSWR (Voltage Standing Wave Ratio) is typically specified to ensure efficient signal transmission and minimize signal loss. The mechanical dimensions and mounting options are also important considerations for proper installation. Phoenix Contact provides detailed datasheets with comprehensive specifications, including radiation patterns, impedance matching information, and environmental testing data. These datasheets are essential for engineers and installers to ensure optimal performance of the antenna in specific applications. Proper grounding and surge protection are also recommended to protect the antenna and connected wireless devices from electrical damage.

The antenna is often constructed with UV-resistant materials to prevent degradation from prolonged exposure to sunlight. Its compact size and lightweight design facilitate easy installation on poles, walls, or other structures. The N-type connector provides a secure and weather-resistant connection, minimizing the risk of signal loss due to corrosion or vibration. Proper cable selection and installation practices are also critical for maintaining the antenna's performance and reliability.
