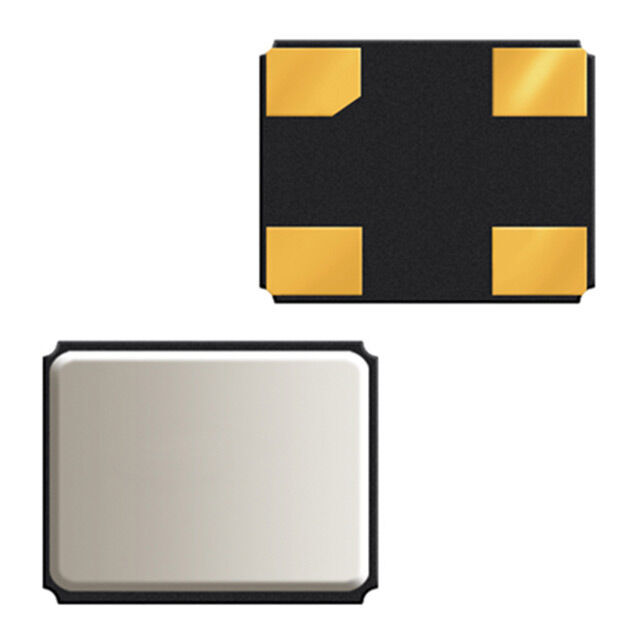

Same model may have multiple batches, images only for reference.
ABM11W-26.0000MHZ-8-B1U-T3 Abracon LLC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ABM11W-26.0000MHZ-8-B1U-T3

Part No ABM11W-26.0000MHZ-8-B1U-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 26.0000MHZ 8PF SMD
Datasheet
ABM11W-26.0000MHZ-8-B1U-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, ResonatorsCrystals
Mfr Abracon LLC
Series ABM11W
Part Status Active
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Operating Temperature -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
Ultra Librarian 3D Model Ultra Librarian ABM11W-26.0000MHZ-8-B1U-T3 CAD Model
