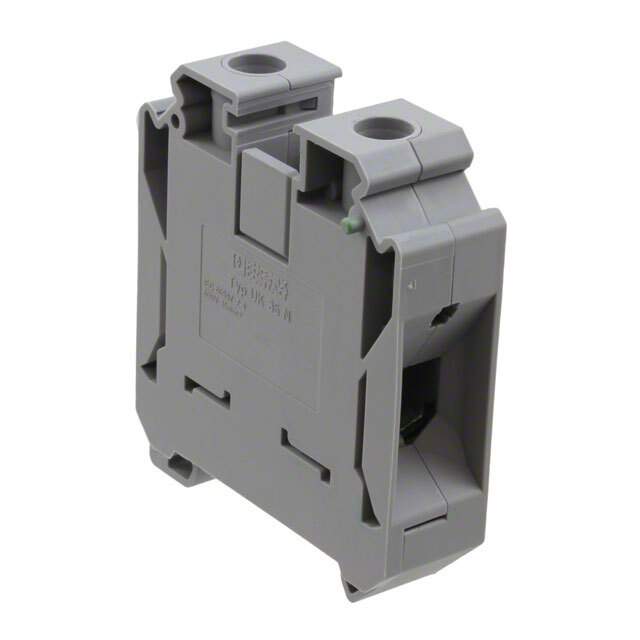

3074130 Real Image
Same model may have multiple batches, images only for reference.

3074130

Part No 3074130
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description CONN TERM BLK FEED THRU 2-8 AWG / Terminal Block Connector 2 Position Feed Through Gray 2-8 AWG
Datasheet
3074130 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Din Rail, Channel
Manufacturer Phoenix Contact
Packaging Bulk
Type Feed Through
Number of Positions 2
Number of Levels 1
Terminal - Width 16.0mm
Termination Style Screw
Current - IEC 125 A
Voltage - IEC 800V
Wire Gauge or Range - AWG 2-8 AWG
Wire Gauge or Range - mm2 10-35mm²
Color Gray
Material - Insulation Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Stripping Length 16mm
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 277-3862,3074130-ND,UK 35 N,UK35N
Standard Package 50
Win Source Part Number 1332172-3074130
Ultra Librarian 3D Model Ultra Librarian 3074130 CAD Model

Description

The Phoenix Contact 3074130 is a feed-through terminal block designed for use in DIN rail and channel applications.

  • Application: DIN Rail and Channel
  • Positions: 2
  • Levels: 1
  • Wire Gauge: 2-8 AWG
  • Wire Size: 10-35mm²
  • Current Rating: 125A
  • Voltage Rating (IEC): 800V
  • Insulation Material: Polyamide (PA)
  • Flammability Rating: UL94 V-0
  • Packaging: Bulk
  • Standard Package: 50
  • Terminal Width: 16mm
