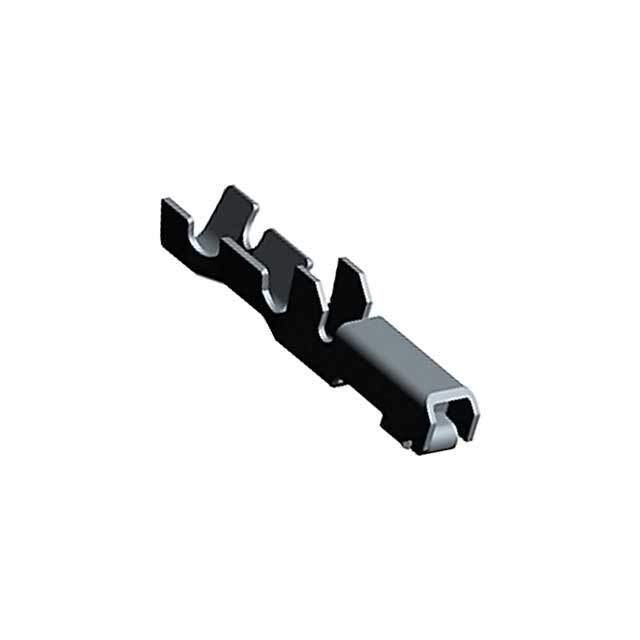

776001-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Contacts
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Finish Tin
Base Product Number 776001
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A126103CT,-776001-1-SI,-776001-1-LSI,-776001-1-CSI,A126103TR,776001-1-ND
Standard Package 5,000
Win Source Part Number 1333723-776001-1
Ultra Librarian 3D Model Ultra Librarian 776001-1 CAD Model

Description

The 1333723-776001-1 is a rectangular connector contact that is used in various applications. The manufacturer is TE Connectivity AMP Connectors and has a base product number of 776001.

  • Contact Type: Socket pin or socket
  • Wire Gauge: 18-22 AWG
  • Contact Termination: crimp
  • Contact Finish: tin
  • Package: reel-tr
  • Standard Package: 5,000
  • MSL level: 1 (unlimited)
  • HTSUS: 8536.90.4000
