Products specifications Report Issue?

Approvals CB, CSA, KEMA, UL, cULus
Color Grey
Connector Type Screw
Current 65 A
Current Rating 76 A
Depth 10.2 mm
Flammability Rating UL94 V-0
Height 78 mm
Housing Color Grey
Housing Material Polyamide
Insulation Material Nylon
Lead Free Lead Free
Length 77.5 mm
Max Current Rating 57 A
Max Supply Voltage 500 V
Mount Cable
Number of Circuits 1
Number of Contacts 4
Number of Levels 2
Number of Poles 4
Number of Positions 4
Number of Rows 4
Radiation Hardening No
RoHS Compliant
Stripping Length 8 mm
Terminal Width 10.2 mm
Termination Screw
Voltage 600 V
Voltage Rating 500 V
Voltage Rating (DC) 500 V
Weight 44.250005 g
Width 10.2 mm
Wire/Cable Gauge 6 AWG
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Win Source Part Number 1164080-2772077
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2772077 CAD Model

Description

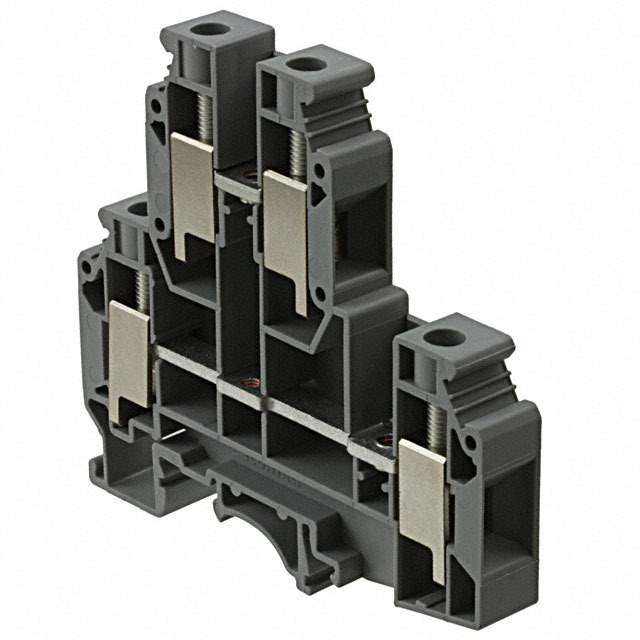

The Phoenix Contact 1164080-2772077 is a 4-position, 2-level terminal block with a screw connector.

  • Voltage Rating: 500V
  • Current Rating: 76A
  • Housing Material: polyamide
  • Housing Color: grey
  • Insulation Material: nylon
  • Approvals: CB, CSA, KEMA, UL, cULus
  • Width: 10.2mm
  • Height: 78mm
  • Depth: 10.2mm
  • Stripping Length: 8mm
  • Wire/Cable Gauge: 6 AWG
  • Flammability Rating: UL94 V-0
  • Lead-Free: true
  • Ideal for: cable mounting
