Same model may have multiple batches, images only for reference.

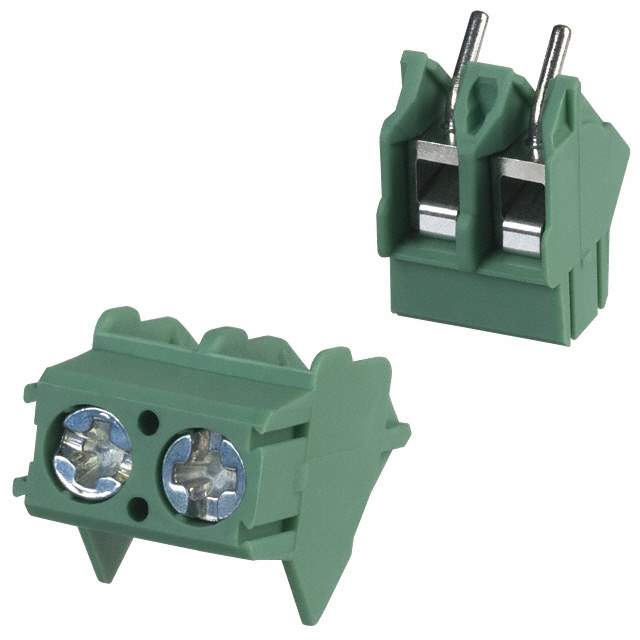

1988804 Real Image
Same model may have multiple batches, images only for reference.

1988804

Part No 1988804
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLOCK 2POS 45DEG 5MM PCB / 2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Datasheet
1988804 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Phoenix Contact
Packaging Bulk
Number of Levels 1
Positions Per Level 2
Pitch 0.197" (5.00mm)
Mating Orientation 45° (135°) Angle with Board
Current 15 A
Voltage 300 V
Wire Gauge 12-26 AWG
Mounting Through Hole
Wire Termination Screw
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA), Nylon
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Screw Thread M2.6
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 277-1764,PTA 1.5/2-5.0,PTA1.5/2-5.0
Standard Package 250
Win Source Part Number 1332249-1988804
Ultra Librarian 3D Model Ultra Librarian 1988804 CAD Model

Description

The Phoenix Contact 1332249-1988804 is a wire to board connector that is used in terminal blocks and interconnects.

  • Positions per Level: 2
  • Number of Levels: 1
  • Pitch: 0.197 inches (5.00mm)
  • Termination Style: screw
  • Current: 15A
  • Voltage: 300V
  • Wire Gauge Range: 12-26 AWG
  • Housing Material: polyamide (PA) and nylon
  • RoHS Compliant: yes
  • Standard Package: 250
  • Mounting: through hole
  • Insulation Height: 0.285 inches (7.25mm)
