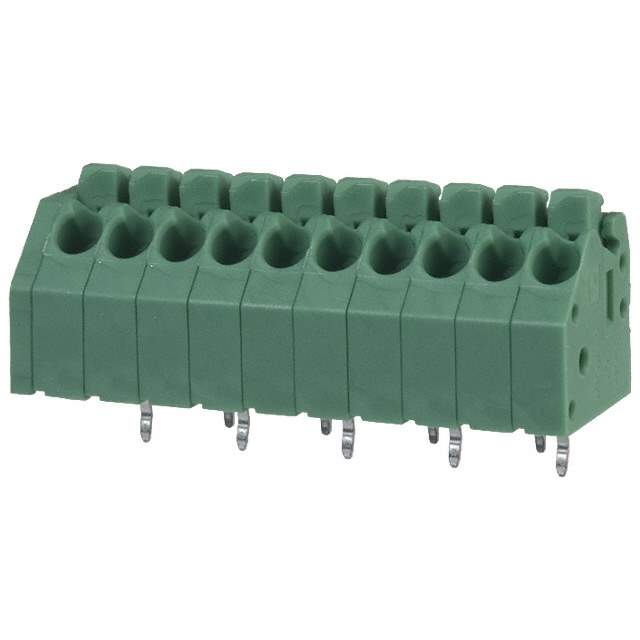

Same model may have multiple batches, images only for reference.

1985276

Name: 1985276
Brand: Phoenix Contact
SKU: 1349084
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1985276
Manufacturer	Phoenix Contact
Catalog	Terminal Blocks
Description	TERM BLOCK 10POS 45DEG 3.5MM PCB / 10 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr	Phoenix Contact
Series	COMBICON PTSA
Package	Bulk
Number of Levels	1
Positions Per Level	10
Pitch	0.138" (3.50mm)
Mating Orientation	45° (135°) Angle with Board
Current	2 A
Voltage	300 V
Wire Gauge	16-24 AWG
Mounting Type	Through Hole
Wire Termination	Screwless - Spring Cage, Tension Clamp
Color	Green
Housing Material	Polyamide (PA) , Nylon
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349084-1985276
Ultra Librarian 3D Model	Ultra Librarian 1985276 CAD Model

Description

The 1985276 is a wire to board terminal block from Phoenix Contact.

Series: COMBICON PTSA
Positions Per Level: 10
Color: Green
Packaging: Bulk
Quantity: 100
Pitch: 0.138 inches (3.50mm)
Wire Gauge: 16-24 AWG
Voltage Rating: 300V
Current Rating: 2A
Mating Orientation: 45° (135°) Angle with Board
Wire Termination: Screwless, Spring Cage, Tension Clamp
Mounting Type: Through Hole
Application: Open Market
ECCN: EAR99
REACH: Unaffected
