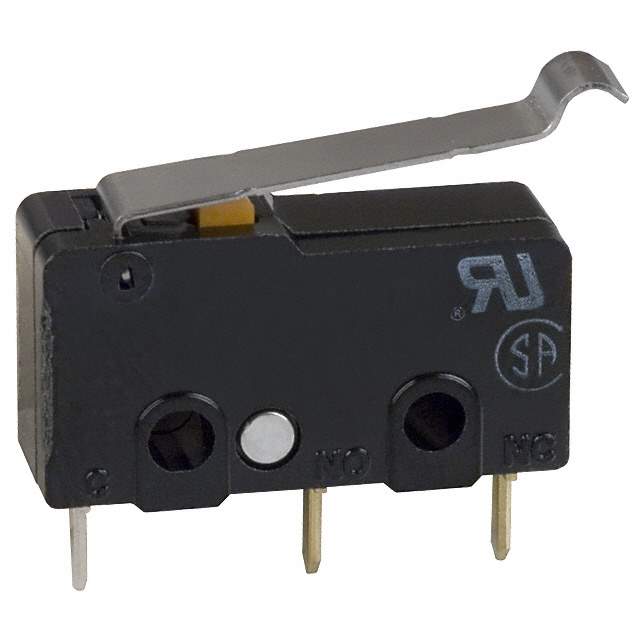

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.040" (1.0mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names SS10GL13D
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233480-SS-10GL13D
Ultra Librarian 3D Model Ultra Librarian SS-10GL13D CAD Model

Description

The SS-10GL13D is a limit switch from Omron Electronics Inc-EMC Div.

  • Circuit Configuration: SPDT
  • Operating Force: 50gf
  • Switch Function: On-Mom
  • Actuator Type: Lever with Simulated Roller
  • Differential Travel: 0.040" (1.0mm)
  • Overtravel: 0.040" (1.0mm)
  • Release Force: 6.118gf
  • Voltage Rating: 250V AC
  • Current Rating: 10A (AC)
  • Mounting: Through-Hole
  • Termination Style: PC Pin
  • Operating Temperature Range: -25°C to 85°C
