Same model may have multiple batches, images only for reference.

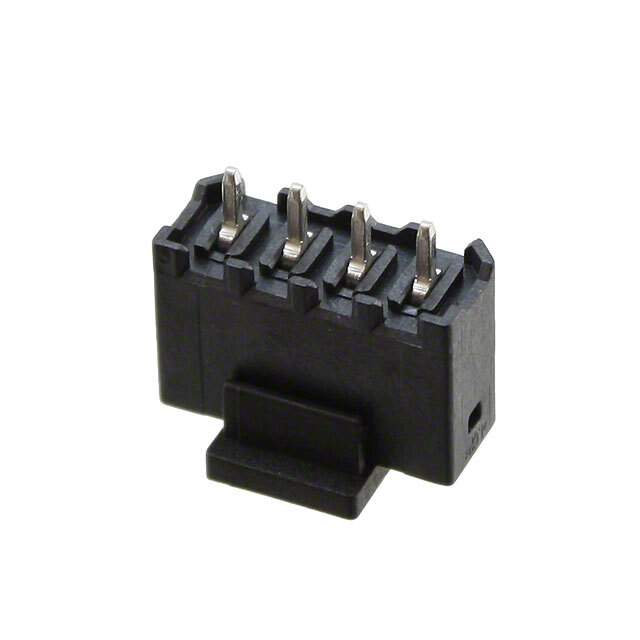

1778573 Real Image
Same model may have multiple batches, images only for reference.

1778573

Part No 1778573
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Datasheet
1778573 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON PTSM
Package Tape & Reel (TR),Cut Tape (CT)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.098" (2.50mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 6A
Voltage - IEC 160 V
Color Black
Contact Mating Finish Tin
Features Pick and Place Cap
Material Flammability Rating UL94 V-0
Housing Material Liquid Crystal Polymer (LCP)
Contact Tail Length 0.083" (2.10mm)
Insulation Height 0.295" (7.50mm)
Other Names 277-2303-2,PTSM0,5/4-HV-2,5-THRR32,277-2303-1
Standard Package 330
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285211-1778573
Ultra Librarian 3D Model Ultra Librarian 1778573 CAD Model

Description

The Phoenix Contact COMBICON PTSM is a connector that is used in electronic applications.

  • Manufacturer: Phoenix Contact
  • Used With: Headers, Male Pins, Shrouded Plugs and Sockets
  • Current Rating: 6A
  • Voltage Rating: 160V
  • RoHS Compliant: Yes
  • Pitch: 0.098" (2.50mm)
  • Header Orientation: Vertical
  • Packaging: Tape & Reel
  • Features: Pick and Place Cap
