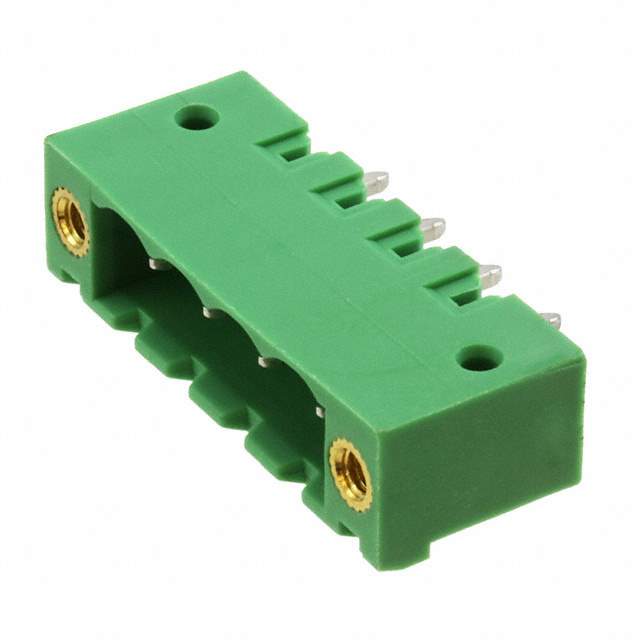

Same model may have multiple batches, images only for reference.

1777099

Name: 1777099
Brand: Phoenix Contact
SKU: 1332275
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1777099
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 4POS VERT 5.08MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting	Through Hole
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	12 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Features	Mating and Mounting Flange
Material Flammability Rating	UL94 V-0
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.154" (3.90mm)
Insulation Height	0.472" (12.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	1777099-NDR,277-5784,1777099-ND,MSTBV2,5/4-GF-5,08
Standard Package	250
Win Source Part Number	1332275-1777099
Ultra Librarian 3D Model	Ultra Librarian 1777099 CAD Model

Description

The Phoenix Contact 1332275-1777099 is a 4-position, 4-level, shrouded header with male pins that has a pitch of 0.200 inches (5.08mm).

Number of Positions: 4
Number of Levels: 4
Header Orientation: Vertical
Pitch: 0.200 inches (5.08mm)
Mounting Type: Through Hole
Current Rating (IEC): 12A
Voltage Rating (IEC): 630V
Voltage Rating (UL): 300V
Housing Material: Polybutylene Terephthalate (PBT)
Material Flammability Rating: UL94 V-0
Contact Material: Tin
Features: Mating and Mounting Flanges
Insulation Height: 0.472 inches (12.00mm)
Contact Tail Length: 0.154 inches (3.90mm)
RoHS3 Compliant: Yes
