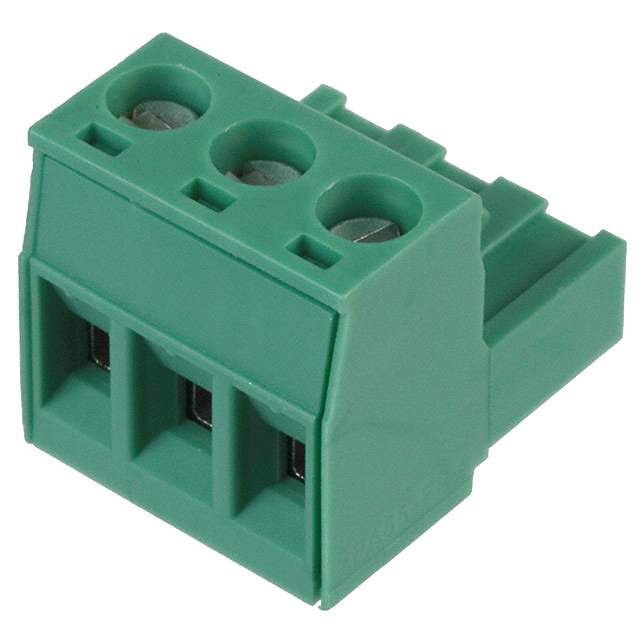

1757022 Real Image
Same model may have multiple batches, images only for reference.

1757022

Part No 1757022
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A Cardboard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 100 °C
Approvals UL, VDE
Color Green
Connector Type Screw, Socket
Contact Material Tin
Contact Plating Tin
Current 15 A
Current Rating 12 A
Depth 18.2 mm
Flammability Rating UL94 V-0
Gender Male
Height 15.24 mm
Housing Color Green
Housing Material Polyamide
Insulation Material Nylon
Lead Free Lead Free
Lead Pitch 5.08 mm
Length 15.24 mm
Max Current Rating 12 A
Max Supply Voltage 250 V
Mount Cable, Free Hanging
Number of Circuits 3
Number of Contacts 3
Number of Levels 1
Number of Poles 3
Number of Positions 3
Number of Positions Per Level 3
Number of Rows 1
Orientation Right Angle
Pitch 5.08 mm
Radiation Hardening No
RoHS Compliant
Termination Screw
Voltage 300 V
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Weight 127.999996 g
Width 18.3 mm
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 1195959-1757022
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1757022 CAD Model

Description

The 1195959-1757022 is a terminal block connector designed by Phoenix Contact.

  • Positions: Three
  • Orientation: Right-angle
  • Voltage Rating: 250 V
  • Current Rating: 12 A
  • Approvals: UL and VDE
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Supply and Demand Status: Low
  • Popularity: Medium
