Same model may have multiple batches, images only for reference.

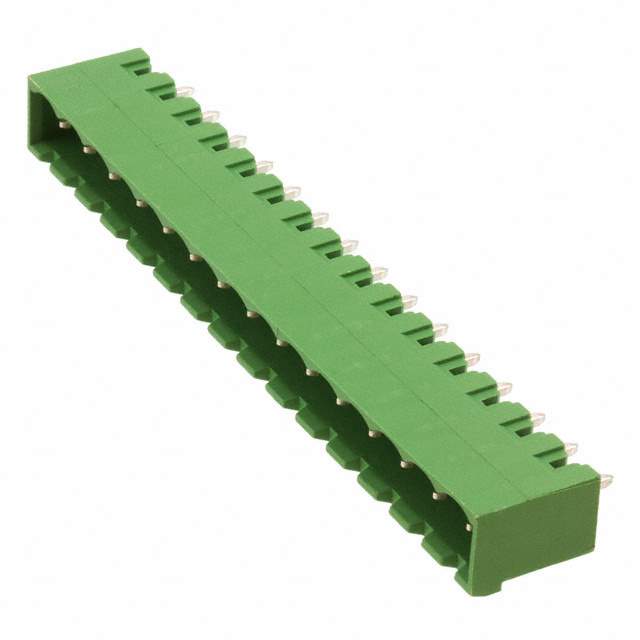

1755862 Real Image
Same model may have multiple batches, images only for reference.

1755862

Part No 1755862
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Pluggable Terminal Blocks 15 Pos 5.08mm pitch Through Hole Header
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Green, Grey
Connector Type Plug
Contact Material Tin
Contact Plating Tin
Current 12 A
Current Rating 12 A
Depth 8.6 mm
Flammability Rating UL94 V-0
Height 15.9 mm
Housing Color Green
Housing Material Polybutylene
Lead Free Lead Free
Length 78.2 mm
Max Current Rating 12 A
Mount Through Hole
Number of Contacts 15
Number of Levels 1
Number of Positions 15
Number of Positions Per Level 15
Number of Rows 1
Orientation Straight
Pitch 5.08 mm
RoHS Compliant
Termination Solder
Voltage 300 V
Voltage Rating 250 V
Weight 154.999997 g
Width 78.2 mm
Win Source Part Number 1200474-1755862
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1755862 CAD Model

Description

The 1755862 is a terminal block connector manufactured by Phoenix Contact.

  • Connector Type: Plug
  • Pitch: 5.08 mm
  • Voltage Rating: 250 V
  • Current Rating: 12 A
  • Number of Contacts: 15
  • Contact Material: Tin
  • Housing Material: Polybutylene
  • Housing Color: Green
  • Height: 15.9 mm
  • Weight: 154.999997 g
  • Supply and Demand Status: Limited
