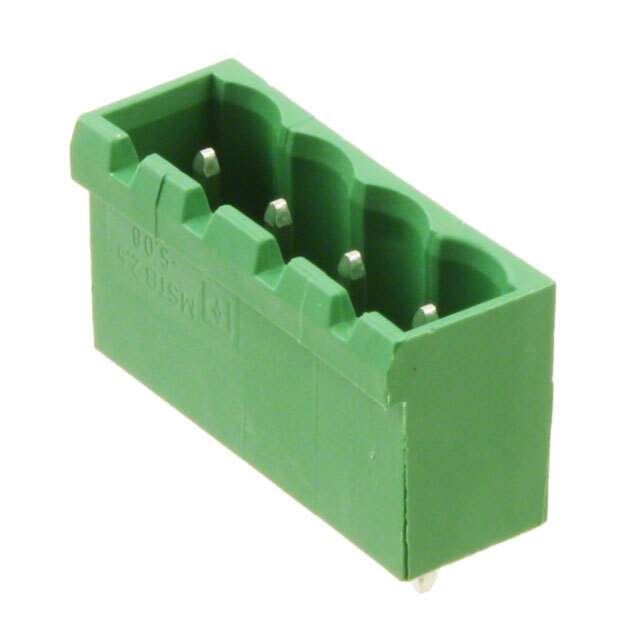

Same model may have multiple batches, images only for reference.

1755752

Name: 1755752
Brand: Phoenix Contact
SKU: 1332298
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1755752
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 4POS VERT 5.08MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting	Through Hole
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	12 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.154" (3.90mm)
Insulation Height	0.472" (12.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	277-1152,MSTBVA 2.5/4-G-5.08,MSTBVA2,5/4-G-5,08
Standard Package	250
Win Source Part Number	1332298-1755752
Ultra Librarian 3D Model	Ultra Librarian 1755752 CAD Model

Description

The Phoenix Contact 1755752 is a header, male pins, shrouded (4 side) component that has four positions per level and one level.

Positions Per Level: 4
Number of Levels: 1
Pitch: 0.200" (5.08mm)
Current (IEC): 12A
Current (UL): 12A
Voltage (IEC): 630V
Voltage (UL): 300V
Housing Material: Polyamide (PA), Nylon
Material Flammability Rating: UL94 V-0
ROHS3 Compliant: Yes
ECCN: EAR99
