Same model may have multiple batches, images only for reference.

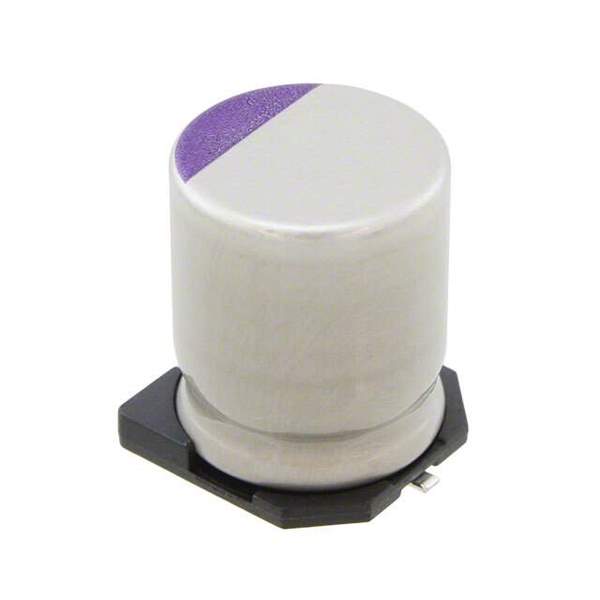

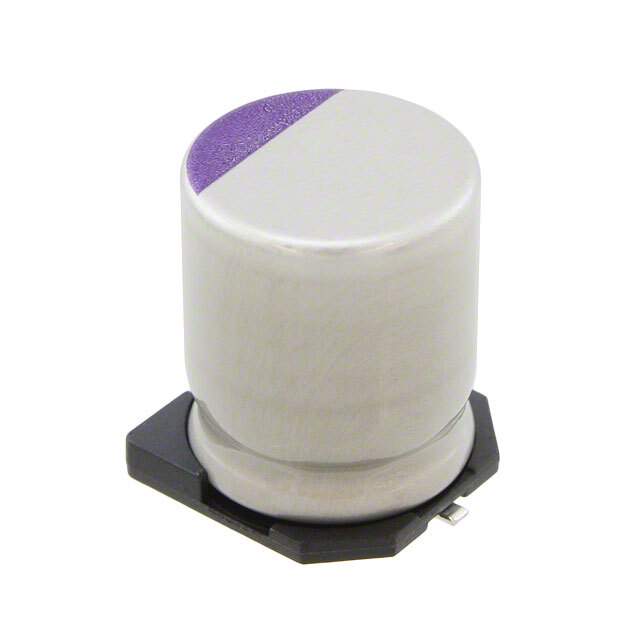

16SVPE470M Real Image
Same model may have multiple batches, images only for reference.

16SVPE470M

Part No 16SVPE470M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 470UF 20% 16V SMD / 470 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 10mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Polymer
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 10mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 305 mA @ 120 Hz
Ripple Current @ High Frequency 6.1 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number 16SVPE
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P16477DKR,P16477TR,P16477CT
Standard Package 400
Win Source Part Number 1328522-16SVPE470M
Ultra Librarian 3D Model Ultra Librarian 16SVPE470M CAD Model

Description

The Panasonic Electronic Components 1328522-16SVPE470M is a polymer aluminum capacitor with a capacitance of 470 µF and rated voltage of 16 V.

  • Capacitance: 470 µF
  • Rated Voltage: 16 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 10mOhm
  • Lifetime: 2000 Hrs @ 105°C
  • Temperature Range: -55°C ~ 105°C
  • Application: General Purpose
  • Case/Package: Radial, Can - SMD
  • ECCN: EAR99
  • HTSUS: 8532.22.0020
  • ROHS3 Compliant: Yes
