Same model may have multiple batches, images only for reference.

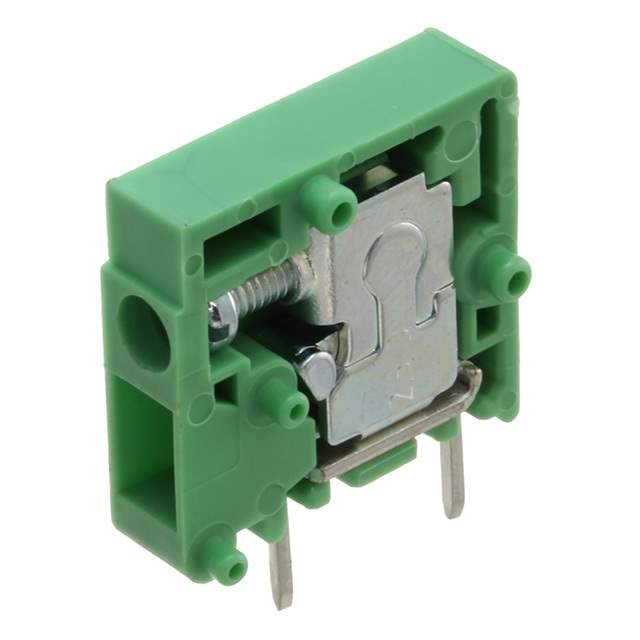

1700040 Real Image
Same model may have multiple batches, images only for reference.

1700040

Part No 1700040
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLOCK 1POS SIDE ENTRY PCB / 1 Position Wire to Board Terminal Block Horizontal with Board Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Phoenix Contact
Packaging Bulk
Number of Levels 1
Positions Per Level 1
Mating Orientation Horizontal with Board
Current 17 A
Voltage 300 V
Wire Gauge 12-30 AWG
Mounting Through Hole
Wire Termination Screw - Pressure Clip
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA), Nylon
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Screw Thread M2.5
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number FRONT2,5-H/SA10,277-6197,1700040-ND,1700040-NDR
Standard Package 50
Win Source Part Number 1332201-1700040
Ultra Librarian 3D Model Ultra Librarian 1700040 CAD Model

Description

The Phoenix Contact 1332201-1700040 is a wire to board terminal block connector that comes with a bulk packaging.

  • Packaging: Bulk
  • Color: Green
  • Interlocking: On the side
  • Wire Gauge Sizes: 12-30 AWG
  • Housing Material: Polyamide (PA) and nylon
  • Voltage Rating: 300V
  • Current Rating: 17A
  • Wire Termination: Screw-pressure clip
  • Screw Thread Size: M2.5
  • Torque Rating: 0.4-0.5 Nm (3.5-4.4 Lb-In)
  • Mounting Orientation: Through-hole
  • Mating Orientation: Horizontal
  • RoHS Compliant: Yes
