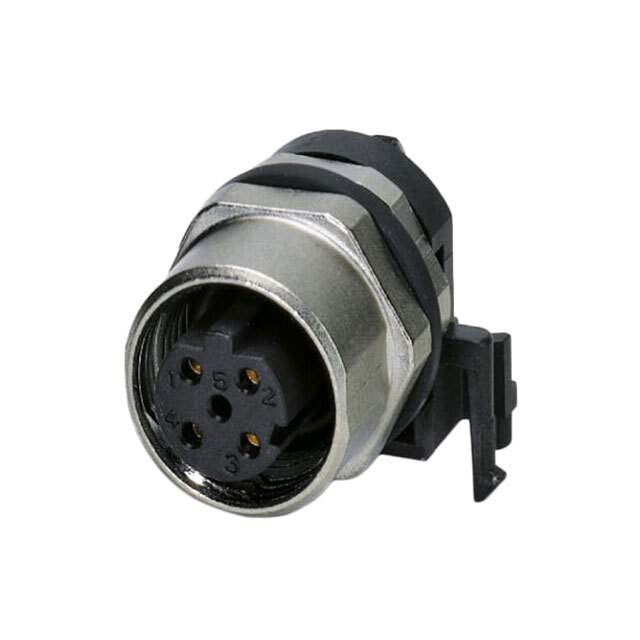

1436550 Real Image
Same model may have multiple batches, images only for reference.

1436550

Part No 1436550
Manufacturer Phoenix Contact
Catalog Circular Connectors
Description Conn M12 Circular SKT 4 POS Solder RA Thru-Hole 4 Terminal 1 Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Gender Female
Contact Material Brass
Contact Plating Gold
Current Rating 4 A
Fastening Type Push, Twist
Features Shielded
Gender Receptacle
Max Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Bulkhead, Panel, Through Hole
Number of Contacts 4
Number of Ports 1
Number of Positions 4
Number of Terminals 4
Orientation Right Angle
Packaging Bulk
Ratings Dust Tight, IP67, Waterproof
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Thread Size M12
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1148920-1436550
Categories Circular Connectors
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1436550 CAD Model

Description

The Phoenix Contact 1148920-1436550 is a circular connector with four positions and a shielded feature.

  • Connector Type: Receptacle
  • Termination: Solder
  • Fastening Type: Push and Twist
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Current Rating: 4A
  • Number of Contacts: 4
  • Gender: Receptacle
  • Orientation: Right-Angle
  • Contact Plating: Gold
  • Number of Ports: 1
  • Features: Dust-Tight, IP67, Waterproof
  • Thread Size: M12
  • Packaging: Bulk
  • Mounting: Bulkhead, Panel, Through-Hole
  • Manufacturer: Phoenix Contact
  • Win Source Part Number: 1148920-1436550
