Same model may have multiple batches, images only for reference.

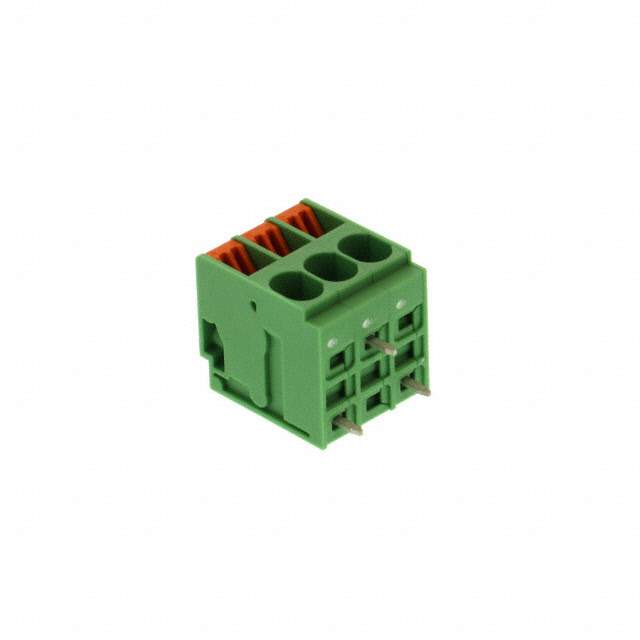

1017522 Real Image
Same model may have multiple batches, images only for reference.

1017522

Part No 1017522
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 3P SIDE ENT 6.35MM PCB / 3 Position Wire to Board Terminal Block Horizontal with Board 0.250" (6.35mm) Through Hole
Datasheet
1017522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Phoenix Contact
Packaging Bulk
Number of Levels 1
Positions Per Level 3
Pitch 0.250" (6.35mm)
Mating Orientation Horizontal with Board
Current 30 A
Voltage 600 V
Wire Gauge 10-24 AWG
Mounting Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Features Lever Actuated
Color Green
Temperature Range - Operating -40°C
Contact Material - Plating Tin
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number TDPT 4/ 3-SP-6,35-ZB,277-17526
Standard Package 50
Win Source Part Number 1332209-1017522
Ultra Librarian 3D Model Ultra Librarian 1017522 CAD Model

Description

The Phoenix Contact 1332209-1017522 is a lever-actuated wire-to-board terminal block with a pitch of 0.250 inches (6.35mm) and a green color.

  • Pitch: 0.250 inches (6.35mm)
  • Color: Green
  • Current Rating: 30A
  • Voltage Rating: 600V
  • Wire Gauge: 10-24 AWG
  • Wire Termination: Screwless, leg spring and push-in spring options
  • Mounting: Through-hole
  • RoHS compliant: Yes
