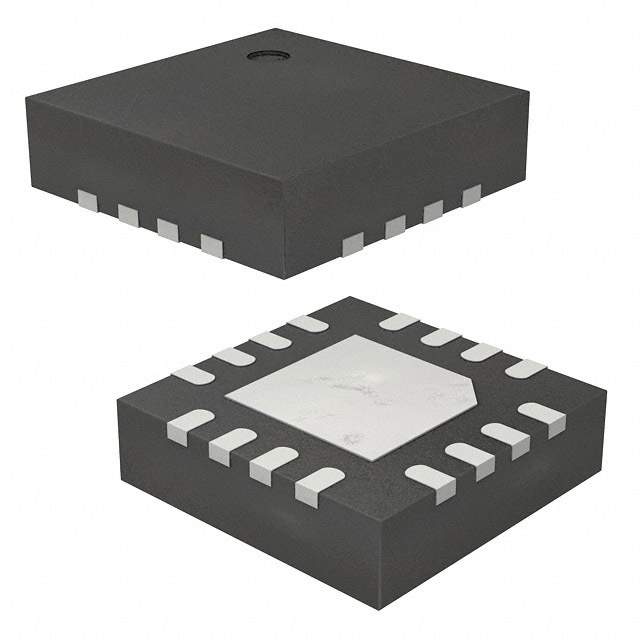

PE42520MLBA-Z Real Image
Same model may have multiple batches, images only for reference.

PE42520MLBA-Z

Part No PE42520MLBA-Z
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description IC RF SWITCH SPDT 50 OHM 16-QFN
Datasheet
PE42520MLBA-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Peregrine Semiconductor
Packaging Reel - TR
Status Active
Frequency - Lower 9kHz
Frequency - Upper 13GHz
Isolation @ Frequency 18dB @ 13GHz (typ)
Insertion Loss @ Frequency 2dB @ 13GHz
IIP3 66dBm (typ)
Topology Absorptive
Circuit SPDT
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 2.3 V to 5.5 V
RF Type ATE
Case / Package 16-QFN (3x3)
Win Source Part Number 1087300-PE42520MLBA-Z
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE42520MLBA-Z CAD Model

Description

The Peregrine Semiconductor PE42520MLBA-Z is a SPDT circuit absorptive topology that comes in a 16-QFN (3x3) case/package.

  • Topology: SPDT Circuit Absorptive
  • Package: 16-QFN (3x3)
  • Impedance: 50 Ohm
  • Frequency Range: 9kHz to 13GHz
  • Isolation: 18dB @ 13GHz (typ)
  • Insertion Loss: 2dB @ 13GHz
  • IIP3: 66dBm (typ)
  • RF Type: ATE
  • Supply and Demand Status: Balanced
