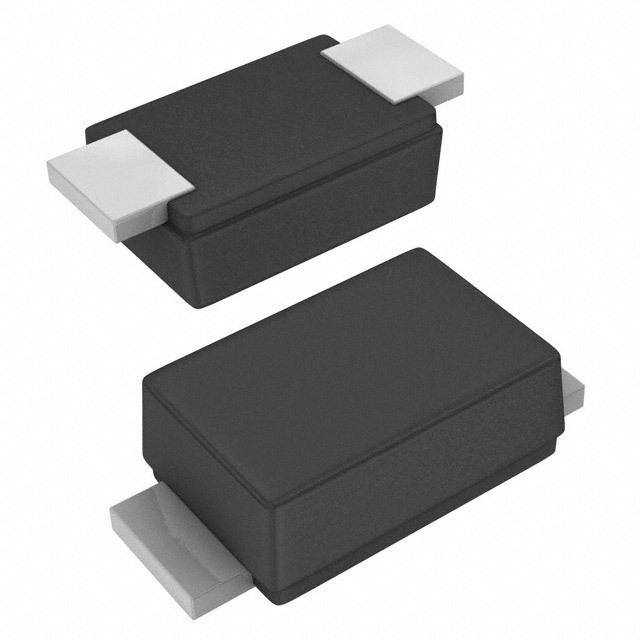

Part No SMF28A_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Description SOD-123FL, TVS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Panjit
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28V
Voltage - Breakdown (Min) 31.1V
Voltage - Clamping (Max) @ Ipp 45.4V
Current - Peak Pulse (10/1000µs) 4.4A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Base Product Number SMF28
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 328924-SMF28A_R1_00001
Ultra Librarian 3D Model Ultra Librarian SMF28A_R1_00001 CAD Model

Description

The SMF28A_R1_00001 is a Zener type TVS diode designed for general-purpose circuit protection.

  • Package: SOD-123F package
  • Packaging: Tape and reel packaging
  • Standard Package: 3,000 pieces
  • Voltage Reverse Standoff: 28V
  • Voltage Breakdown: 31.1V
  • Clamping Voltage: 45.4V @ peak pulse current of 4.4A
  • Peak Pulse Power: 200W
  • Operating Temperature: -55°C to 150°C (TJ)
  • Classification: EAR99
  • Manufacturer: Panjit
  • Product Status: Active product
