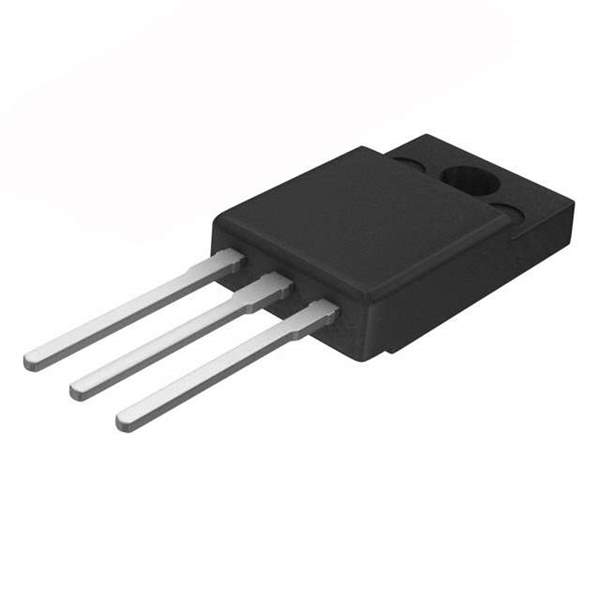

The SB3045FCT is a Schottky Barrier Rectifier manufactured by Panjit. This device is designed for high-efficiency rectification in a variety of power applications. Its key features include a low forward voltage drop, fast switching speed, and high surge current capability, making it suitable for demanding applications requiring reliable and efficient power conversion.

Applications:

• Switching Mode Power Supplies (SMPS)
• High-Frequency Inverters
• DC-DC Converters
• Free-Wheeling Diodes in Inductive Loads
• Polarity Protection

Features:

• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• High Surge Current Capability: Provides protection against transient voltage spikes.
• Fast Switching Speed: Reduces switching losses in high-frequency applications.
• High Reliability: Ensures stable performance under various operating conditions.
• Pb-Free Lead Finish: Complies with environmental regulations.

Benefits:

• Improved System Efficiency: Reduces energy consumption and heat generation.
• Enhanced System Reliability: Increases the lifespan of electronic equipment.
• Reduced Heat Sink Requirements: Minimizes the need for bulky cooling solutions.
• Compact Design: Allows for smaller and more efficient power supply designs.
• Environmentally Friendly: Complies with RoHS regulations.

Technical Specifications (Typical):

• Maximum Repetitive Peak Reverse Voltage (VRRM): 45V
• Maximum Average Forward Rectified Current (IF(AV)): 30A (15A per diode if dual configuration)
• Peak Forward Surge Current (IFSM): Approximately 200A
• Forward Voltage (VF) at 15A: Typically around 0.55V - 0.7V
• Operating Temperature Range: -65°C to +150°C
• Package: TO-220AB or equivalent

Note: Refer to the official Panjit datasheet for the most accurate and detailed specifications for the SB3045FCT.
