Products specifications

Manufacturer Panjit
Win Source Part Number 313627-SB3040PT
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SB3040PT CAD Model

Description

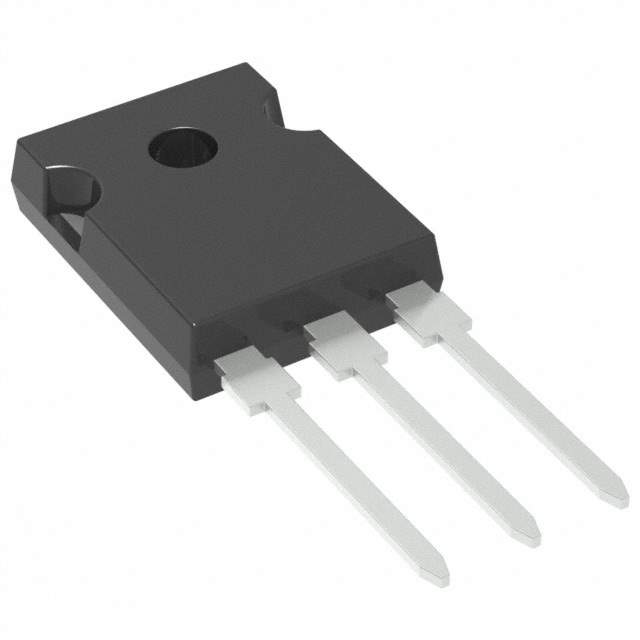

The SB3040PT is a Schottky Barrier Rectifier manufactured by Panjit. Designed for efficient rectification and fast switching, this component minimizes power loss with its low forward voltage drop, enhancing overall system performance. The 'PT' designation commonly indicates the package type, which is typically a TO-220AB or similar through-hole configuration providing reliable thermal performance and easy installation.

Applications:

  • Switching power supplies
  • DC-DC converters
  • Freewheeling diodes
  • Polarity protection
  • High-frequency power rectification

Features:

  • Low forward voltage drop
  • High surge current capability
  • Fast switching speed
  • High reliability
  • Through-hole mounting for robust connection

Benefits:

  • Improved energy efficiency due to minimal power dissipation
  • Protection against voltage spikes and transient currents
  • Optimized performance in high-frequency circuits
  • Dependable operation in demanding environments
  • Easy installation and stable mounting

Additional Details:

The SB3040PT typically features a repetitive peak reverse voltage (VRRM) of 40V and a forward current (IF) of 30A. The operating temperature range is commonly between -55°C to +150°C. The forward voltage (VF) is generally around 0.55V at rated forward current, minimizing power losses. The fast reverse recovery time (trr) ensures efficient operation at high frequencies. The TO-220AB package aids in effective heat dissipation, enabling the component to operate at higher currents without overheating. It's widely used in applications where efficient power conversion and reliable performance are essential. Refer to the official Panjit datasheet for specific electrical characteristics, thermal specifications, and package dimensions.
