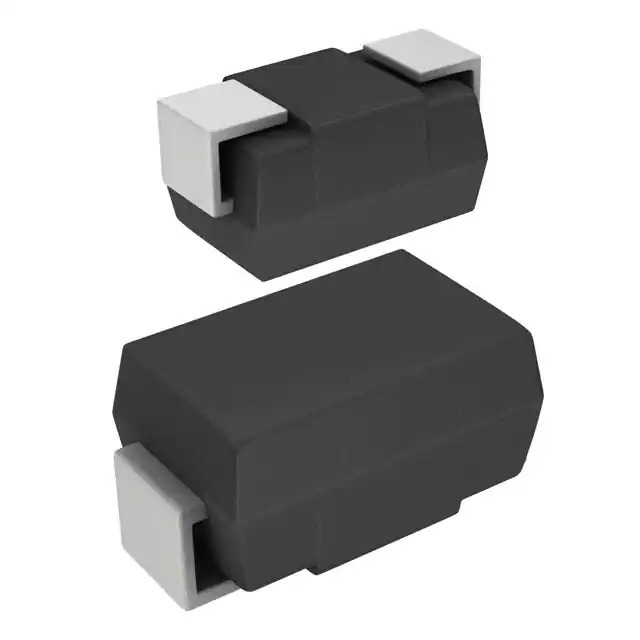

P4SMA18A_R1_00001

Name: P4SMA18A_R1_00001
Brand: Panjit
SKU: 1362183
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	P4SMA18A_R1_00001
Manufacturer	Panjit
Catalog	TVS - Diodes
Description	SURFACE MOUNT TRANSIENT VOLTAGE / 25.2V Clamp 17A Ipp Tvs Diode Surface Mount SMA (DO-214AC)
Datasheet	P4SMA18A_R1_00001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Panjit International Inc.
Series	-
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15.3V
Voltage - Breakdown (Min)	17.1V
Voltage - Clamping (Max) @ Ipp	25.2V
Current - Peak Pulse (10/1000µs)	17A
Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA (DO-214AC)
Base Product Number	P4SMA18
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362183-P4SMA18A_R1_00001
Ultra Librarian 3D Model	Ultra Librarian P4SMA18A_R1_00001 CAD Model

Alternative Products

Description

The P4SMA18A is a TVS diode from Panjit International Inc.

Reverse Standoff Voltage: 15.3V
Breakdown Voltage: 17.1V
Clamping Voltage: 25.2V @ a peak pulse current of 17A
Peak Power Rating: 400W
Mounting Type: Surface Mount
Package: DO-214AC
REACH: Unaffected
Operating Temperature: -55°C to 150°C
Application: Protecting sensitive electronic components from transient voltage spikes
