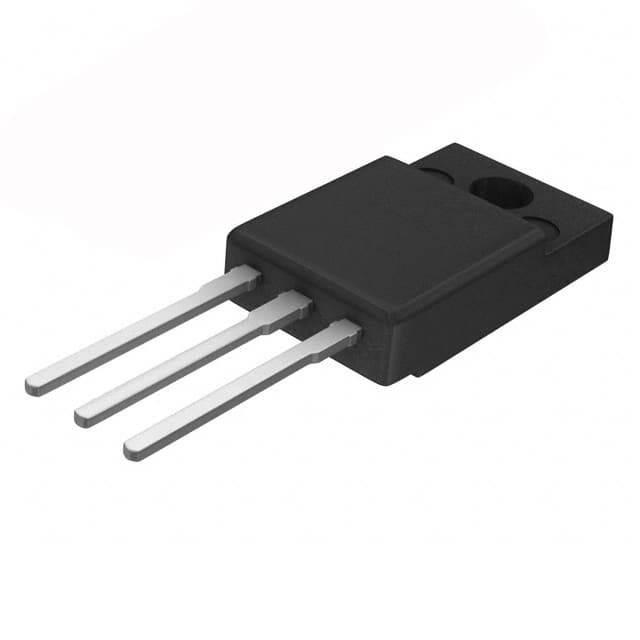

Same model may have multiple batches, images only for reference.

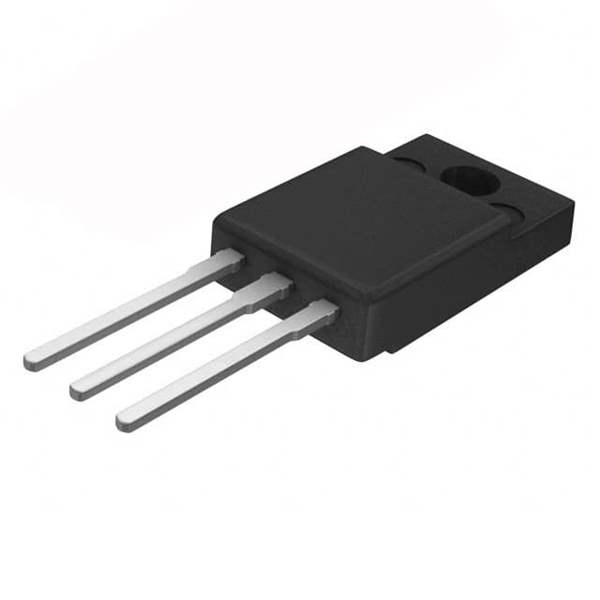

MBR30H150FCT_T0_00001 Panjit
Same model may have multiple batches, images only for reference.

MBR30H150FCT_T0_00001

Part No MBR30H150FCT_T0_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description ULTRA LOW IR SCHOTTKY BARRIER RE / Diode Array 1 Pair Common Cathode Schottky 150 V 15A Through Hole TO-220-3 Full Pack
Datasheet
MBR30H150FCT_T0_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Series MBR30H150FCT
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 800 nA @ 150 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Supplier Device Package ITO-220AB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR30H150FCT_T0_00001
Standard Package 50
Win Source Part Number 1174999-MBR30H150FCT_T0_00001
Ultra Librarian 3D Model Ultra Librarian MBR30H150FCT_T0_00001 CAD Model

Description

The Panjit MBR30H150FCT Schottky diode is a fast recovery diode with a maximum reverse voltage of 150V and maximum forward voltage of 850mV at 15A.

  • Manufacturer: Panjit
  • Type: Schottky diode
  • Recovery: Fast
  • Maximum Reverse Voltage: 150V
  • Maximum Forward Voltage: 850mV @ 15A
  • Current Average Rectified: 15A
  • Mounting: Through-hole
  • Diode Configuration: 1 pair common cathode
  • Package: TO-220-3 full pack
