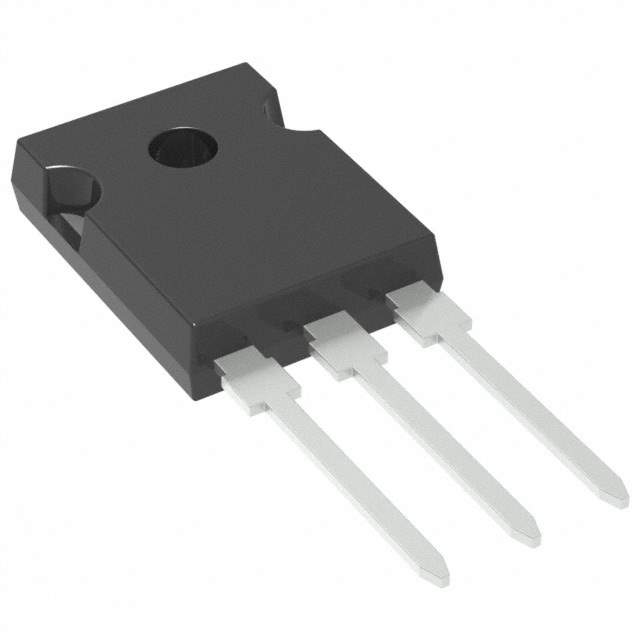

MBR3045PT_T0_00001 Real Image
Same model may have multiple batches, images only for reference.

MBR3045PT_T0_00001

Part No MBR3045PT_T0_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description TO-3P, SKY / Diode Array 1 Pair Common Cathode Schottky 45 V 30A Through Hole TO-247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 45 V
Operating Temperature - Junction -65°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD (TO-3P)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR3045PT_T0_00001
Standard Package 30
Win Source Part Number 1135578-MBR3045PT_T0_00001
Ultra Librarian 3D Model Ultra Librarian MBR3045PT_T0_00001 CAD Model

Description

The MBR3045PT_T0_00001 is a Schottky diode rectifier array from Panjit International Inc.

  • Speed: Fast Recovery (< 500ns > 200mA (Io))
  • Package: Tube
  • Standard Packages: 30
  • Voltage: 45 V DC Reverse (Vr) (Max)
  • Forward Voltage: 700 mV @ 15 A
  • Current - Reverse Leakage @ Vr: 100 µA @ 45 V
  • Operating Temperature - Junction: -65°C ~ 175°C
  • Diode Configuration: 1 Pair Common Cathode
