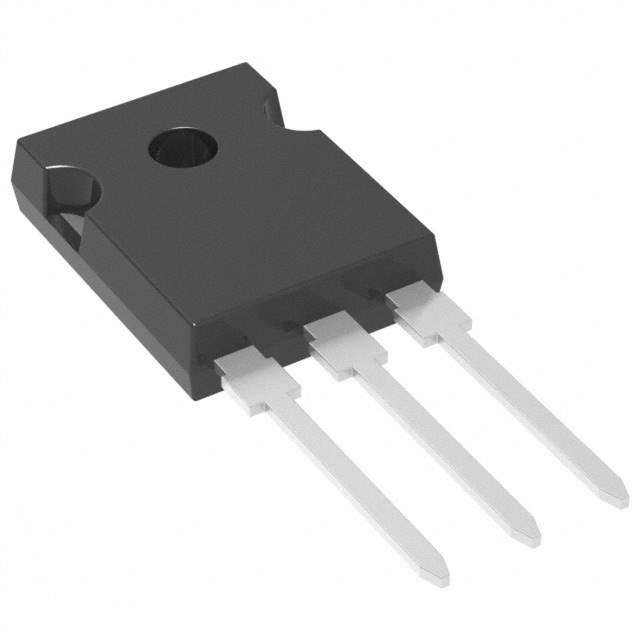

MBR30100PT_T0_00001 Real Image
Same model may have multiple batches, images only for reference.

MBR30100PT_T0_00001

Part No MBR30100PT_T0_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Description TO-3P, SKY / Diode Array 1 Pair Common Cathode Schottky 100 V 30A Through Hole TO-247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Panjit International Inc.
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 800 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 100 V
Operating Temperature - Junction -65°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD (TO-3P)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MBR30100PT_T0_00001
Standard Package 30
Win Source Part Number 1156971-MBR30100PT_T0_00001
Ultra Librarian 3D Model Ultra Librarian MBR30100PT_T0_00001 CAD Model

Description

The Panjit International Inc. 1156971-MBR30100PT_T0_00001 is a Schottky diode array with a voltage rating of 100 V and a current rating of 30 A.

  • Component Type: Through-hole
  • Diode Configuration: 1 pair common cathode
  • Applications: Designed for use in rectification and freewheeling applications
  • Package: TO-247-3
  • Standard Package: 30
  • RoHS Compliant: RoHS
  • ECCN: EAR99
  • Availability: Available in the open market with a 48 pct.
  • Manufacturer: Panjit International Inc.
