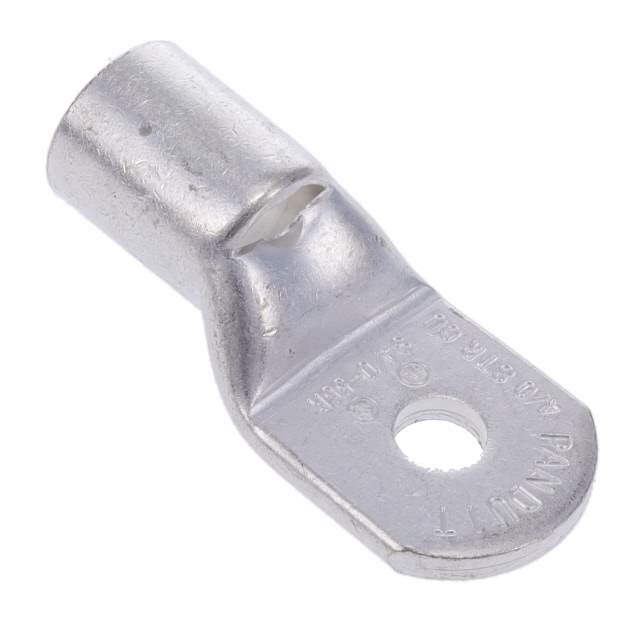

S4/0-56R-5 Real Image
Same model may have multiple batches, images only for reference.

S4/0-56R-5

Part No S4/0-56R-5
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S4/0-56R-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 5/16 Stud
Thickness 0.140" (3.56mm)
Width - Outer Edges 1.060" (26.92mm)
Length - Overall 2.300" (58.42mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 4/0 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S4/0
Other Names 298-23455,S4/0-56R-5
Standard Package 5
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285148-S4/0-56R-5
Ultra Librarian 3D Model Ultra Librarian S4/0-56R-5 CAD Model

Description

The 1285148-S4/0-56R-5 is a ring connector manufactured by Panduit Corp. Panduit Corp

  • Termination: Crimp, Funnel Opening
  • Contact Finish: Tin
  • Wire Gauge: 4/0 AWG
  • Stud/Tab Size: 5/16 Stud
  • Insulation: Non-Insulated
  • Thickness: 0.140" (3.56mm)
  • Width: 1.060" (26.92mm)
  • Length: 2.300" (58.42mm)
  • REACH Status: Not Affected
  • ECCN: EAR99
