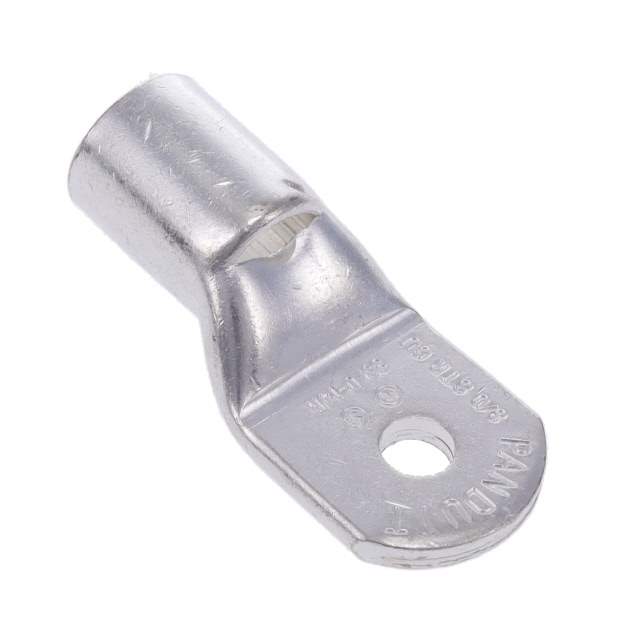

S3/0-14R-5 Real Image
Same model may have multiple batches, images only for reference.

S3/0-14R-5

Part No S3/0-14R-5
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S3/0-14R-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 1/4 Stud
Thickness 0.130" (3.30mm)
Width - Outer Edges 0.960" (24.38mm)
Length - Overall 2.100" (53.34mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 3/0 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S3/0
Other Names 298-23454,S3/0-14R-5
Standard Package 5
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285175-S3/0-14R-5
Ultra Librarian 3D Model Ultra Librarian S3/0-14R-5 CAD Model

Description

The Pan-Term® S3/0-14R-5 is a Terminal - Ring Connector designed for use in Connectors, Interconnects.

  • Wire Gauge: 3/0 AWG
  • Stud/Tab Size: 1/4 Stud
  • Color: -
  • Termination: Crimp, Funnel Opening
  • Contact Finish: Tin
  • Contact Material: Copper
  • Mounting Type: Free Hanging (In-Line)
  • Thickness: 0.130" (3.30mm)
  • Width - Outer Edges: 0.960" (24.38mm)
  • Length - Overall: 2.100" (53.34mm)
  • Terminal Type: Flat Sided
  • Insulation: Non-Insulated
  • Insulation Diameter: -
  • Package: Bulk
  • Win Source Part Number: 1285175-S3/0-14R-5
