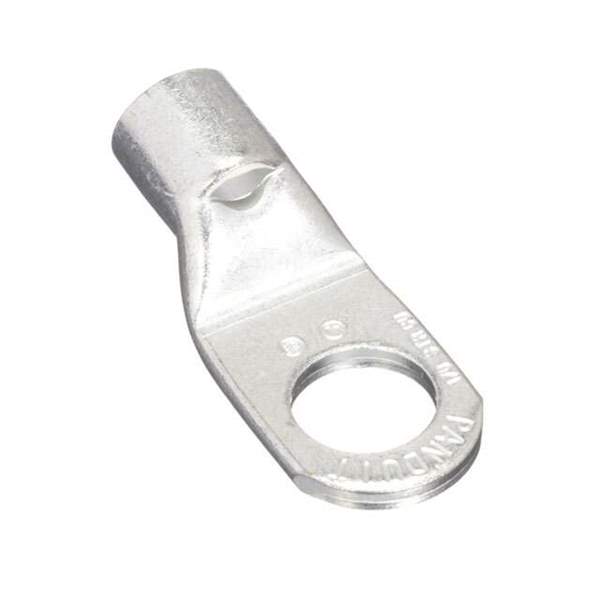

S2-14R-X Real Image
Same model may have multiple batches, images only for reference.

S2-14R-X

Part No S2-14R-X
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S2-14R-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 1/4 Stud
Thickness 0.110" (2.79mm)
Width - Outer Edges 0.700" (17.78mm)
Length - Overall 1.600" (40.64mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 1-2 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S2-14
Other Names S2-14R-X,298-15775
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285178-S2-14R-X
Ultra Librarian 3D Model Ultra Librarian S2-14R-X CAD Model

Description

The Panduit Corp S2-14R-X is a ring connector that is part of the Pan-Term series.

  • Insulation: Non-Insulated
  • Termination: Crimp and Funnel Opening
  • Contact Finish: Tin
  • Wire Gauge: 1-2 AWG
  • Terminal Type: Flat-Sided
  • Terminal Thickness: 0.110 inches
  • Outer Edges Width: 0.700 inches
  • Overall Length: 1.600 inches
  • Stud Size: 1/4 stud size
