Same model may have multiple batches, images only for reference.

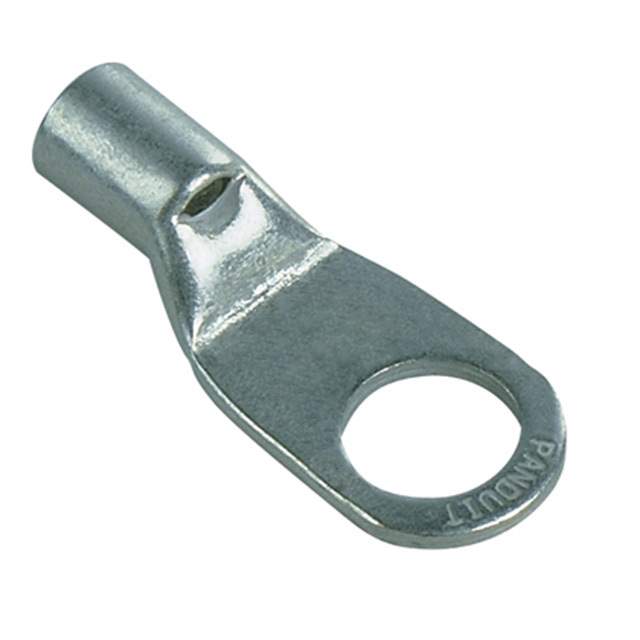

S2/0-12R-X Real Image
Same model may have multiple batches, images only for reference.

S2/0-12R-X

Part No S2/0-12R-X
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S2/0-12R-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 1/2 Stud
Thickness 0.130" (3.30mm)
Width - Outer Edges 0.850" (21.59mm)
Length - Overall 2.100" (53.34mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 2/0 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S2/0
Other Names 298-11870,S2/0-12R-X
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285188-S2/0-12R-X
Ultra Librarian 3D Model Ultra Librarian S2/0-12R-X CAD Model

Description

The S2/0-12R-X is a ring connector terminal manufactured by Panduit Corp.

  • Series: Pan-Term®
  • Termination: crimp
  • Opening: funnel opening
  • Contact Material: copper
  • Contact Finish: tin
  • Wire Gauge: 2/0 AWG
  • Terminal Type: flat-sided
  • Insulation: non-insulated
  • Stud/Tab Size: 1/2 stud
  • Mounting Type: free hanging (in-line)
