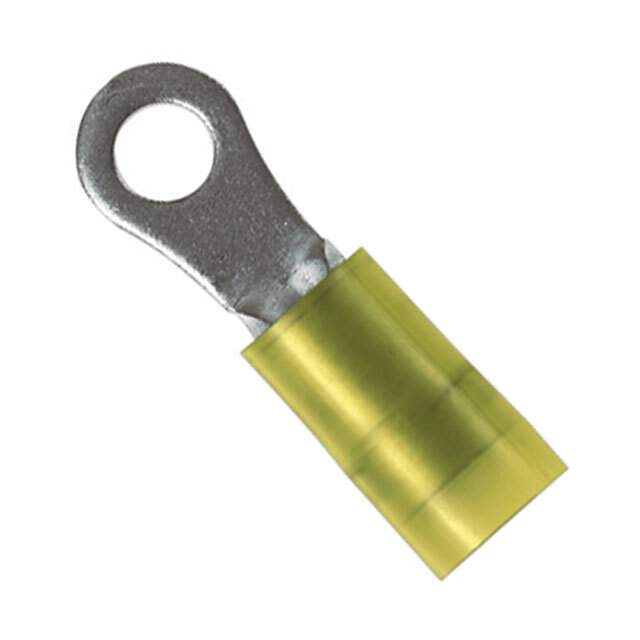

PN12-6HDR-D Real Image
Same model may have multiple batches, images only for reference.

PN12-6HDR-D

Part No PN12-6HDR-D
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING CIRC 12-16AWG #6 CRIMP / Ring Terminal Connector 6 Stud Circular 12-16 AWG Crimp
Datasheet
PN12-6HDR-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.050" (1.27mm)
Width - Outer Edges 0.310" (7.87mm)
Length - Overall 1.060" (26.92mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 12-16 AWG
Insulation Insulated
Features Heavy Duty, Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.225" (3.05mm ~ 5.72mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number PN12
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 298-20190,PN12-6HDR-D-ND
Standard Package 500
Win Source Part Number 961296-PN12-6HDR-D
Ultra Librarian 3D Model Ultra Librarian PN12-6HDR-D CAD Model

Description

The Panduit Corp 915774 is a yellow heavy-duty circular terminal connector designed for crimp termination.

  • Manufacturer: Panduit Corp
  • Wire Gauge: 12-16 AWG
  • Thickness: 0.050" (1.27mm)
  • Width of Outer Edges: 0.310" (7.87mm)
  • Length Overall: 1.060" (26.92mm)
  • Insulation: Insulated
  • Insulation Diameter: 0.120" ~ 0.225" (3.05mm ~ 5.72mm)
  • Stud/Tab Size: 6 Stud
  • Mounting Type: Free Hanging (In-Line)
  • Contact Material: Copper
  • Insulation Material: Polyamide (PA), nylon
  • Package: Bulk
  • Standard Package: 500
  • ECCN: EAR99
