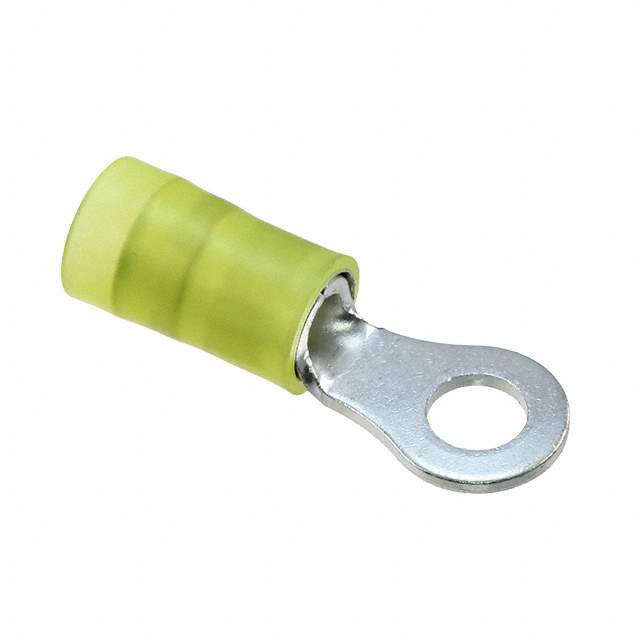

PN10-10R-D Real Image
Same model may have multiple batches, images only for reference.

PN10-10R-D

Part No PN10-10R-D
Manufacturer Panduit Corp
Catalog Terminals
Description CONN RING CIRC 10-12AWG #10 / Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.380" (9.65mm)
Length - Overall 1.060" (26.92mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Insulated
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.225" (5.72mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number PN10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names PN1010RD,298-10297,PN10-10R-D-ND
Standard Package 500
Win Source Part Number 1179201-PN10-10R-D
Ultra Librarian 3D Model Ultra Librarian PN10-10R-D CAD Model

Description

The Panduit Corp Pan-Term series of ring connectors includes the PN10-10R-D connector.

  • Terminal Type: Ring
  • Wire Gauge: 10-12 AWG
  • Contact Material: Copper
  • Insulation Material: Polyamide (PA)
  • Thickness: 0.040" (1.02mm)
  • Width - Outer Edges: 0.380" (9.65mm)
  • Length - Overall: 1.060" (26.92mm)
  • Insulated: Yes
  • Insulation Diameter: 0.225" (5.72mm)
  • Mounting Type: Free Hanging (In-Line)
  • Standard Package: 500
  • Packaging: Bulk
