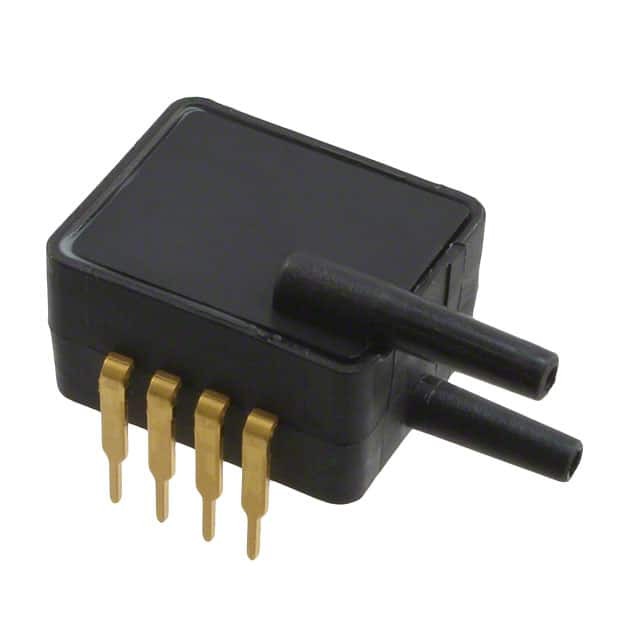

ASDX001D44R
Same model may have multiple batches, images only for reference.

ASDX001D44R

Part No ASDX001D44R
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 1PSID 0.09" 4.5V
Datasheet
ASDX001D44R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series ASDX
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 1PSI (6.89kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±2%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.09" (2.29mm) Tube, Dual
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 5PSI (34.47kPa)
Temperature Range - Operating -20°C ~ 105°C
Mounting Type Through Hole
Package / Case 8-DIP Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 845425-ASDX001D44R
Ultra Librarian 3D Model Ultra Librarian ASDX001D44R CAD Model

Description

The 845425-ASDX001D44R is a pressure sensor from the ASDX series by Honeywell.

  • Termination Style: PC pin
  • Features: amplified output and temperature compensation
  • Package: bulk
  • Applications: board mount
  • Output Type: analog voltage with a range of 0.5V to 4.5V.
  • Accuracy: ±2%
  • Sensor Type: differential
  • Operating Pressure: 1 PSI (6.89kPa)
  • Maximum Pressure: 5 PSI (34.47kPa)
  • Port Size: male - 0.09" (2.29mm) tube, dual
  • Port Style: barbless
  • Voltage Supply: 4.75V to 5.25V
  • Mounting: through-hole mounted
  • Package: 8-DIP module
  • ECCN: EAR99, indicating no specific control classification.
  • HTSUS code: 9026.20.4000.
