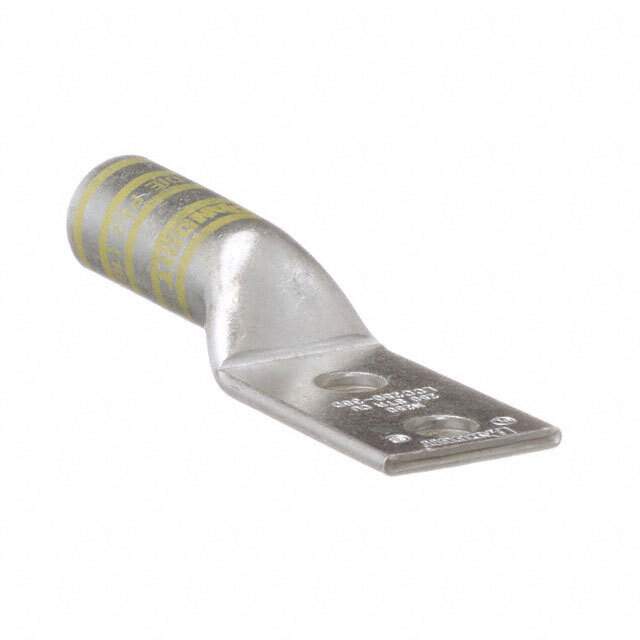

Same model may have multiple batches, images only for reference.

LCC250-38D-X

Name: LCC250-38D-X
Brand: Panduit Corp
SKU: 1011991
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCC250-38D-X
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT TONG 250 MCM #3/8 / Terminal Connector Rectangular Rectangular Tongue 250MCM (kcmil) 3/8 Stud
Datasheet	LCC250-38D-X Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	3/8 Stud
Terminal Style	Two Stud Holes
Tab Thickness	0.140" (3.56mm)
Length - Overall	4.090" (103.89mm)
Width - Outer Edges	1.170" (29.72mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	250MCM (kcmil)
Insulation	Non-Insulated
Color	Yellow
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.630" (16.00mm)
Diameter - Barrel OD	0.770" (19.56mm)
Diameter - Ring ID	0.410" (10.41mm)
Base Product Number	LCC250
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	07498338290,LCC250-38D-X-ND,298-22123
Standard Package	1
Win Source Part Number	1011991-LCC250-38D-X
Ultra Librarian 3D Model	Ultra Librarian LCC250-38D-X CAD Model

Alternative Products

Description

The Panduit Corp Pan-Lug™ LCC250-38D-X is a yellow-colored rectangular tongue terminal connector.

Color: yellow
Termination: crimp barrel
Material: copper
Contact Finish: electro-tin
Package: bulk
Wire Gauge: up to 250MCM (kcmil)
Stud Holes: two
Mounting Type: free hanging (in-line)
Insulation: non-insulated
Tab Thickness: 0.140" (3.56mm)
Terminal Type: rectangular tongue
Stud/Tab Size: 3/8
Barrel ID Diameter: 0.630" (16.00mm)
Barrel OD Diameter: 0.770" (19.56mm)
Ring ID Diameter: 0.410" (10.41mm)
Overall Length: 4.090" (103.89mm)
Width: 1.170" (29.72mm) at the outer edges
