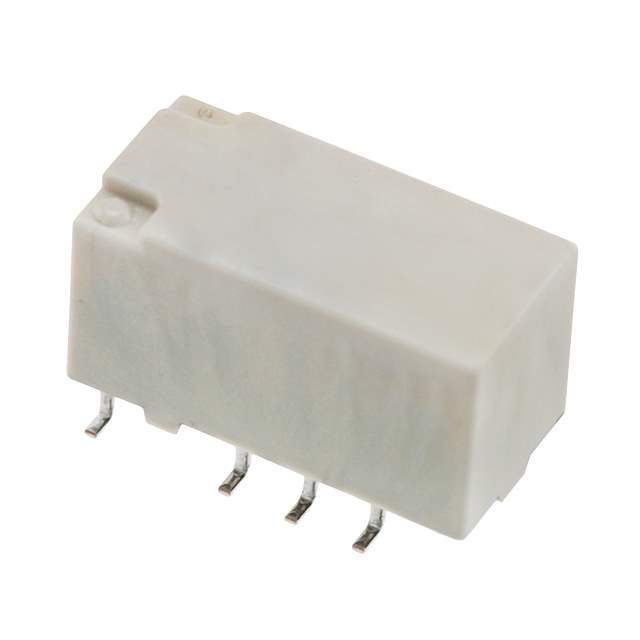

TX2SA-24V-X Real Image
Same model may have multiple batches, images only for reference.

TX2SA-24V-X

Part No TX2SA-24V-X
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 24V
Datasheet
TX2SA-24V-X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 5.8mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 4ms
Release Time 4ms
Features Sealed - Fully
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 4.11 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 048376-TX2SA-24V-X
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Signal Processing
Ultra Librarian 3D Model Ultra Librarian TX2SA-24V-X CAD Model

Description

The Panasonic Electric Works 048376-TX2SA-24V-X is a DPDT (2 Form C) sealed relay that operates on a 24VDC coil voltage. It has a coil resistance of 4.11 kOhms and a coil current of 5.8mA.

  • Coil Voltage: 24VDC
  • Coil Resistance: 4.11 kOhms
  • Coil Current: 5.8mA
  • Relay Type: Telecom
  • Contact Rating (current): 2A
  • Switching Voltage: 220VDC - Max
  • Turn On Voltage (Max): 18 VDC
  • Turn Off Voltage (Min): 2.4 VDC
  • Release Time: 4ms
  • Mounting: SMD (SMT) technology
  • Termination Style: Gull wing
  • Operate Time: 4ms
  • Relay: Non-latching
  • Temperature Range: -40°C to 85°C
